Bubble Foil Thermal Insulation
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| material | bubble foil |
|---|
Detail Description

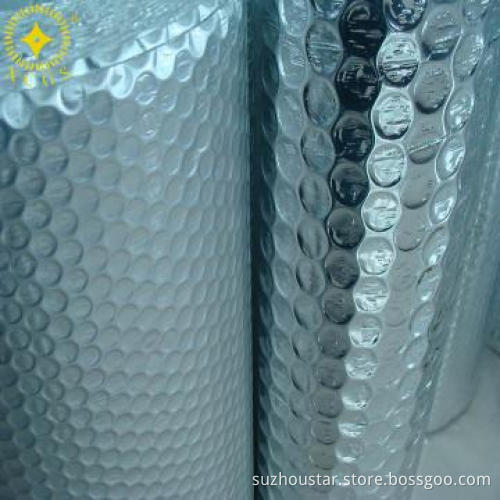

Bubble Aluminum Foil Thermal Insulation
Product Description
It is made from aluminum foil and polyethylene by special machinery. It has no odor and toxicity;it not only overcomes the discomfort and environmental damage brought by glass fiber and epispastic materials, but can also resist ultraviolet radiation that can penetrate through sheet iron, concrete, wood and other common heat insulation materials. This new heat insulation material not only has good insulation, heat-reflection & insulation and anti-radiation functions, but also has good moisture-barrier, heat-preservation and energy-saving functions in housing construction(roof, wall, and floor).
Product structure
1.AL+Bubble+AL 2.AL+Bubble+Bubble+AL 3.AL+Bubble+White Poly
4.AL+Bubble +Bubble+White Poly 5.AL+bubble+Colored Foil
6.AL+Woven Cloth+Bubble+ Colored Foil
7.AL+ Woven Cloth + Bubble+ Woven Cloth+AL
Note : AL refer to Aluminium Foil
Application Range
1.Roof,wall,floor
2.Shells of air conditioner and water heater
3.Protective coatings of water pipe and ventilating pipe
Technical parameters
Material Structure |
AL+Bubble+AL |
AL+Woven Cloth+Bubble+ Colored Foil |
AL+ Woven Cloth + Bubble+ Woven Cloth+AL |
Bubble Size(Diameter*Heihht) |
10mm*4mm |
20mm* 7mm |
20mm*7mm |
Bubble Weight |
0.13kg/m2 |
0.3kg/m2 |
0.3kg/m2 |
Roll Width |
1.2 m (customized) |
1.2 m (customized) |
1.2 m (customized) |
Thickness |
3.5mm |
6.5mm |
6.5mm |
Weight |
256 g/m2 |
425 g/m2 |
500 g/m2 |
Emissivity |
0.03-0.04 COEF |
0.03-0.04 COEF |
0.03-0.04 COEF |
Thermal Conductivity |
0.034W/Mº |
0.032W/Mº |
0.032W/Mº |
Apparent Density |
85 kg/m3 |
70.7 kg/m3 |
83 kg/m3 |
Reflectivity |
96-97% |
96-97% |
96-97% |
Water Vapour Transmission |
0.013 g/m2Kpa |
0.012 g/m2Kpa |
0.012 g/m2Kpa |
Corrosion |
Doesn\'t generate |
Doesn\'t generate |
Doesn\'t generate |
Tensile Strength(MD) |
16.98 Mpa |
16.85 Mpa |
35.87 Mpa |
Tensile Strength(TD) |
16.5 Mpa |
15.19 Mpa |
28.02 Mpa |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 5000 Square Meter/Square Meters |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| FOB Port | Shanghai,Shenzhen |
| Packing Info | package:Reflective insulation packed with po bags |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Northern Europe, Southeast Asia, Western & Southern Europe |
