thermal resistant shine foil/thermal roof lining

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Water Vapour Transmission	0.012G/M3KPA
Bubble Height	2mm-10mm
Place of Origin	Jiangsu, China (Mainland)
Material Structure	AL foil/Bubble/AL foil
Roll Size	1.2m (width)x 40m(length) 48m2

Detail Description

Aluminium Foil Sheet Jumbo Roll Aluminium Foil

Introduction:

Building Material High R Value Aluminum Bubble Foil Insulation consists of AL /bubble/ AL etc multi- layers of obstruction material. Bubble foil insulation is an environment friendly product which has good heat preservation and insulation properties. The outer layer of PET provides excellent abrading and tears resistance. The middle layer of AL / bubble shows strong ability in barrier of moisture and oxygen, reduction and insulation of sound. The middle layer also has the advantages like reflecting light and heat and stopping the penetration of ultraviolet radiation.

Advantage&Property:

1. It has no nocuous substance and accord with the standards of ISO14000. Foil bubble wrap insulation also does not generate any pollutant bringing harm to peoples health when being installed and in use.

2. It is a high quality material for warm-keeping and energy-saving, which is the killer of

dew forming and the transmission of cold and heat . It insulates any heat media with a

stable and low thermal conductivity.

3. Its light in weight. It could absorb sound, reduce noise, and provide cushioning function.

4. Its water and leak proof, anti-flaming, easy to be processed and installed.

5. Its durable in use and endurable to heat , cold and chemical reaction

Application&Usage:

1. Heat insulation and light inflecting in construction and protection for both cold water and hot water pipe

2. Separation of refrigerator; warm keeping for center air-conditioner, refrigerator and other home appliances

3. Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory; moisture proof cushion for traveling

4. Packing for special products and cold storage

5. Insulation board can be made into different colors and anti-static according to customers specific requirements to reach the standards of top grade decoration.

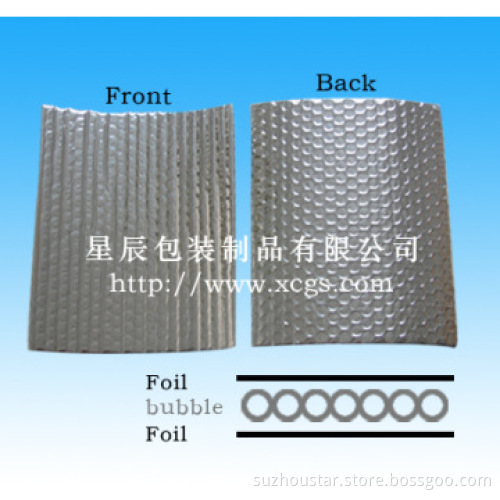

Building Material High R Value Aluminum Bubble Foil Insulation Sketch Map:

Installation Picture:

Container Loading Pic:

Technical parameters

Material Structure	AL+Bubble+AL	AL+Woven Cloth+Bubble+ Colored Foil	AL+ Woven Cloth + Bubble+ Woven Cloth+AL
Bubble Size(Diameter*Heihht)	10mm*4mm	20mm* 7mm	20mm*7mm
Bubble Weight	0.13kg/m2	0.3kg/m2	0.3kg/m2
Roll Width	1.2 m (customized)	1.2 m (customized)	1.2 m (customized)
Thickness	3.5mm	6.5mm	6.5mm
Weight	256 g/m2	425 g/m2	500 g/m2
Emissivity	0.03-0.04 COEF	0.03-0.04 COEF	0.03-0.04 COEF
Thermal Conductivity	0.034W/Mº	0.032W/Mº	0.032W/Mº
Apparent Density	85 kg/m3	70.7 kg/m3	83 kg/m3
Reflectivity	96-97%	96-97%	96-97%
Water Vapour Transmission	0.013 g/m2Kpa	0.012 g/m2Kpa	0.012 g/m2Kpa
Corrosion	Doesn\'t generate	Doesn\'t generate	Doesn\'t generate
Tensile Strength(MD)	16.98 Mpa	16.85 Mpa	35.87 Mpa
Tensile Strength(TD)	16.5 Mpa	15.19 Mpa	28.02 Mpa

Additional Information

Payment Terms	L/C, T/T
Minimum Order	5000 Square Meter/Square Meters
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
FOB Port	Shanghai,Shenzhen
Packing Info	package:Reflective insulation packed with po bags
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
