Aluminum Foil Heat Insulation Fireproof Material
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| thermal conductivity | 0.035 |
|---|---|
| material structure | AL/bubble/AL |
| Color | silve/white/blue |
| thickness | 6.5mm |
| emissivity | 0.03-0.04 |
Detail Description
Heat Resistant/Acoustic Insulation Material
Product Description:

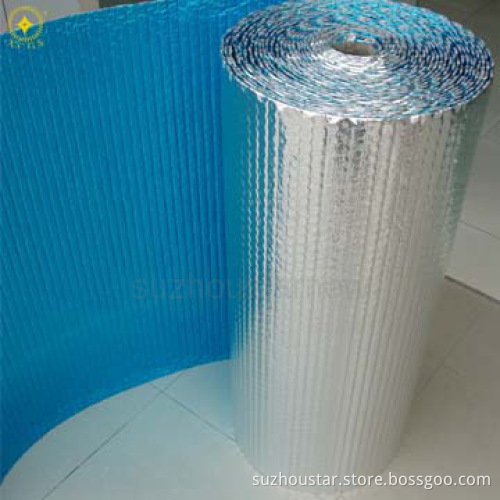

Material: aluminum foil and polyethylene LDPE bubble
Advantage: no odor and toxicity; environment-friendly, Light, soft, dust free, easy to install.
Function: good insulation, heat-reflection & insulation, fireproof insulation and anti- ultraviolet radiation functions, moisture-barrier, heat-preservation and energy-saving functions in housing construction (roof, wall, and floor).
Product common structure :
1.AL+Bubble+AL (bubble: ¢ : 10/20/25mm, H:2.5/3/ 4/6/8/10mm)
2.AL+Bubble+Bubble+AL (bubble: ¢ : 10mm, H:2.5/3/ 4mm)
3.AL+Bubble+White Poly (bubble: ¢ : 10mm, H:2.5/3/ 4mm)
4.AL+Bubble +Bubble+White Poly (bubble: ¢ : 10mm, H:2.5/3/ 4mm)
5.AL+bubble+Colored Foil (bubble: ¢ : 20mm, H: 7mm)
6.AL+Woven Cloth+Bubble+ Colored Foil (bubble: ¢ : 20mm, H: 7mm)
7.AL+ Woven Cloth + white anti-flaming Bubble+ Woven Cloth+AL
Note : AL refer to Aluminum Foil,the structure and the surface color of AL can be changed as customer requirement
Normal roll size: 1.2m x 40m / roll, various width/lengths available upon requests.
Application Range:
1. Roof, wall, floor,ceiling,attic,livestock shelter,basement,duct wrappings,cool container liner,
and sun-stop cover for vehicle.
2. Shells of air conditioning and water heater.
3. Protective coatings of water pipe and ventilating pipe.
Technical parameters :
Material Structure |
AL+Bubble+AL |
AL+Woven Cloth+Bubble + Colored Foil |
AL+ Woven Cloth + Bubble + Woven Cloth+AL |
Bubble Size(Diameter*Heihht) |
10mm*4mm |
20mm* 7mm |
20mm*7mm |
Bubble Weight |
0.13kg/m2 |
0.3kg/m2 |
0.3kg/m2 |
Roll Width |
1.2 m (customized) |
1.2 m (customized) |
1.2 m (customized) |
Thickness |
3.5mm |
6.5mm |
6.5mm |
Weight |
256 g/m2 |
425 g/m2 |
500 g/m2 |
Emissivity |
0.03-0.04 COEF |
0.03-0.04 COEF |
0.03-0.04 COEF |
Thermal Conductivity |
0.034W/Mº |
0.032W/Mº |
0.032W/Mº |
Apparent Density |
85 kg/m3 |
70.7 kg/m3 |
83 kg/m3 |
Reflectivity |
96-97% |
96-97% |
96-97% |
Water Vapour Transmission |
0.013 g/m2Kpa |
0.012 g/m2Kpa |
0.012 g/m2Kpa |
Corrosion |
Doesn\'t generate |
Doesn\'t generate |
Doesn\'t generate |
Tensile Strength(MD) |
16.98 Mpa |
16.85 Mpa |
35.87 Mpa |
Tensile Strength(TD) |
16.5 Mpa |
15.19 Mpa |
28.02 Mpa |
Additional Information
| Payment Terms | L/C, T/T, Paypal, Others |
|---|---|
| Minimum Order | 1000 M2 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | balance with copy of Bill of Lading |
| FOB Port | Shenzhen,Shanghai, |
| Loading Info | negotiated |
| Packing Info | packed with plastic bag eg:bubble diameter:10mm ,height:4mm. a 20\'\'container can put 165-215 rolls(it based on the size 1.2*40M/roll) a 40\'\'HQ can put 320-520 rolls(it based on the size 1.2*40M/roll) |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
