Multi-Mast Aluminum Alloy Lift
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Bed Dimension | 3100x3000mm |
|---|---|
| Power Source | Electric |
| Power | 2.2&1.1kw |
| Max Height | 18m |
| Lift Mechanism | Lift Chain |
| Material | Aluminium Alloy |
| Weight | 1600kg |
| Type | Scissor Lifts |
| Rated Load | 150kg |
| Lift Drive | Hydraulic |
Detail Description

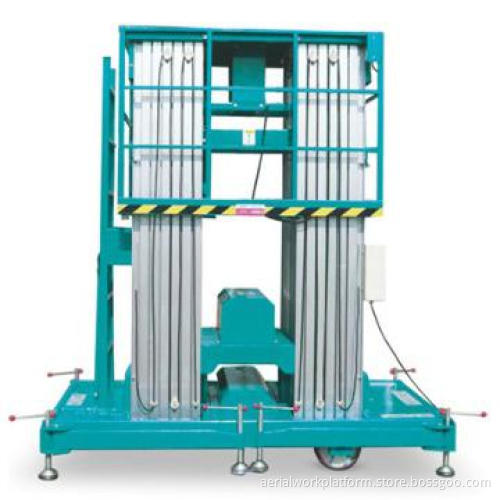

Description of Multi-Mast Aluminum Alloy Lift
Multiple Mast Aluminum Alloy Work Platforms are suitable for single aerial working in much higher attitude, which made up of high grade aluminum profile in six groups of mast supporting the platform synchronous lifting with four founded mast combined with two upper mast ,and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable; It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground. The platform is equipped with the ladder.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls; it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, do no damage to the grounds.
Main Character of Multi Mast Aluminum Alloy Lift
1) High strength aluminum molding material keeps deflecting degree and swing tiny.
2) Equipped with overload safety protection device
3) Equipped with safeguard valve to avoid hydraulic pipe rupture
4) It installs the emergency manual hydraulic valve to cope with power cut.
5) It also can add stretch platform to extend to the desired place when the platform length isn’t enough.
6) Double chains greatly improve the safety factor.
7) Adopt emergency stop button multiple safety protection measures.
8) The translatable supporting legs can ensure working dead zone minimization.
9) Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.
Multiple Mast Aluminum Alloy Work Platforms are suitable for single aerial working in much higher attitude, which made up of high grade aluminum profile in six groups of mast supporting the platform synchronous lifting with four founded mast combined with two upper mast ,and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable; It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground. The platform is equipped with the ladder.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls; it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, do no damage to the grounds.
Main Character of Multi Mast Aluminum Alloy Lift
1) High strength aluminum molding material keeps deflecting degree and swing tiny.
2) Equipped with overload safety protection device
3) Equipped with safeguard valve to avoid hydraulic pipe rupture
4) It installs the emergency manual hydraulic valve to cope with power cut.
5) It also can add stretch platform to extend to the desired place when the platform length isn’t enough.
6) Double chains greatly improve the safety factor.
7) Adopt emergency stop button multiple safety protection measures.
8) The translatable supporting legs can ensure working dead zone minimization.
9) Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1set |
| Lead Time / Delivery Time | 45 Day(s) |
| Sample Available | NO |
| Delivery Details | packing with pallet in PVC FILM |
| FOB Port | Shanghai |
| Packing Info | loading quantity in 20GPloading quantity in 40GP |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
