Multi- Mast Aluminum Aerial Work Platform
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Type | Set Of Cylinder Type Lifts |
|---|---|
| Power Source | Electric |
| Power | 2.2&1.1KW |
| Lift Mechanism | Lift Chain |
| Material | Aluminium Alloy |
| Max Height | 16m |
| Rated Load | 150kg |
| Weight | 1500kg |
| Lift Drive | Hydraulic |
| Bed Dimension | 1.45x0.90mm |
Detail Description

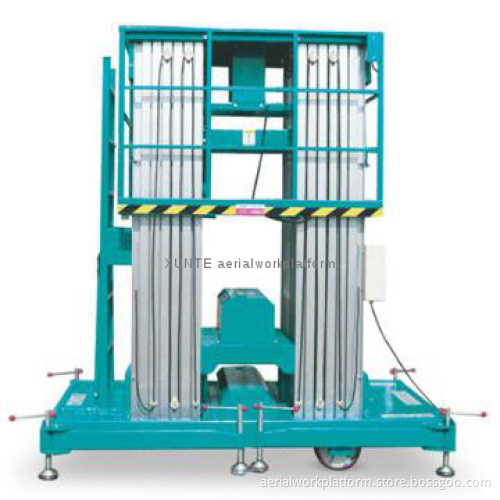

Description of Multi-Mast Aluminum Aerial Work Platform
Multiple Mast Aluminum Alloy Work Platforms are suitable for single aerial working in much higher attitude, which made up of high grade aluminum profile in six groups of mast supporting the platform synchronous lifting with four founded mast combined with two upper mast ,and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable; It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground. The platform is equipped with the ladder.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls; it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, do no damage to the grounds. The lifting height ranges from14m to 19m and lifting capacity is 150kg.The power sources could be 220V, 380V or chargeable battery.
Main Character of Multi Mast Aluminum Aerial Work Platform
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multiple-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over- load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Entry ladder.
Multiple Mast Aluminum Alloy Work Platforms are suitable for single aerial working in much higher attitude, which made up of high grade aluminum profile in six groups of mast supporting the platform synchronous lifting with four founded mast combined with two upper mast ,and equipped with the universal wheels, easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable; It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground. The platform is equipped with the ladder.
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls; it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, do no damage to the grounds. The lifting height ranges from14m to 19m and lifting capacity is 150kg.The power sources could be 220V, 380V or chargeable battery.
Main Character of Multi Mast Aluminum Aerial Work Platform
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multiple-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over- load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Entry ladder.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1set |
| Lead Time / Delivery Time | 45 Day(s) |
| Sample Available | NO |
| FOB Port | Shanghai |
| Loading Info | loading quantity in 20GPloading quantity in 40GP |
| Packing Info | packing with pallet in PVC FILM |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
