8M Aerial Work Platform 200Kg Load
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Max Height | 8m |
|---|---|
| Weight | 480kg |
| Type | Set Of Cylinder Type Lifts |
| Power Source | Electric |
| Rated Load | 200Kg |
| Lift Mechanism | Lift Chain |
| Material | Aluminium Alloy |
| Lift Drive | Hydraulic |
| Power | 1.1Kw |
| Bed Dimension | 1.18×0.62 |
Detail Description

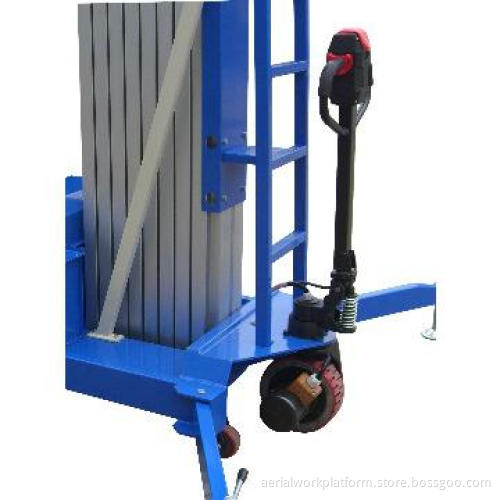

Aerial Work Platform with pulling device
Description of Aerial Work Platform with pulling device
Aerial Work Platform with pulling device, compared with mast aluminum lift, it is equipped with the electric Self-propelled device with moving and turning function. It is in manually traction; easily move, saving manpower and time. Driven by hydraulic motor, turning and lifting by battery in DC power, no external power required. It brings more efficiency and convenience as an ideal and most useful aerial working facility. The electric Self-propelled device can be configured in any of the lifts.
Main Character of Aerial Work Platform with pulling device
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multiple-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over- load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch
13. Optional extended platform
14. Entry ladder
Major Parameter of Full Aerial Work Platform with pulling device
| Mast Type | Model NO. |
Max Height (m) |
Max Working Height (m) |
Loading Capacity (kg) |
Platform Size (m) |
Outrigger Footprint (mm) |
Power Supply (V) |
Lifting Power (KW) |
Weight (kg) |
Dimension (m) |
Pulling Power (kw) |
|
Single Mast |
GTWY6-100 | 6 | 7.7 | 125 | 0.60x0.55 | 1800x1700 | Ac220/DC24V | 0.75 | 260 | 1.32x0.80x1.65 | 0.75 |
| GTWY8-100 | 8 | 9.7 | 125 | 0.60x0.55 | 1800x1700 | Ac220/DC24V | 0.75 | 300 | 1.32x0.80x1.98 | 0.75 | |
| GTWY9-100 | 9 | 10.7 | 125 | 0.60x0.55 | 1900x1700 | Ac220/DC24V | 0.75 | 326 | 1.38x0.85x1.98 | 0.75 | |
| Double Mast | GTWY6-200 | 6 | 7.7 | 200 | 1.18x0.62 | 1900x1800 | Ac220/DC24V | 1.1 | 380 | 1.38x0.85x2.00 | 0.75 |
| GTWY8-100 | 8 | 9.7 | 200 | 1.18x0.62 | 1900x1800 | Ac220/DC24V | 1.1 | 480 | 1.38x0.85x2.00 | 0.75 | |
| GTWY9-200 | 9 | 10.7 | 200 | 1.38x0.62 | 2200x2100 | Ac220/DC24V | 1.1 | 548 | 1.58x0.95x2.00 | 0.75 | |
| GTWY10-200 | 10 | 11.7 | 200 | 1.38x0.62 | 2200x2100 | Ac220/DC24V | 1.1 | 610 | 1.58x0.95x2.25 | 0.75 | |
| GTWY12-200A | 12 | 13.7 | 200 | 1.38x0.62 | 2300x2200 | Ac220/DC24V | 1.1 | 650 | 1.62x0.95x2.25 | 0.75 | |
| GTWY12-200B | 12 | 13.7 | 200 | 1.48x0.62 | 2400x2300 | Ac220/DC24V | 1.1 | 650 | 1.68x0.95x2.00 | 0.75 | |
| Triple Mast | GTWY8-300 | 8 | 9.7 | 300 | 1.20x0.89 | 2200x2100 | Ac220/DC24V | 2.2 | 780 | 1.50x1.05x2.05 | 0.75 |
| GTWY10-300 | 10 | 11.7 | 300 | 1.40x0.88 | 2450x2400 | Ac220/DC24V | 2.2 | 900 | 1.80x1.10x2.05 | 0.75 | |
| GTWY12-300 | 12 | 13.7 | 300 | 1.40x0.88 | 2450x2400 | Ac220/DC24V | 2.2 | 950 | 1.80x1.10x2.32 | 0.75 | |
| GTWY14-300A | 14 | 15.7 | 250 | 1.40x0.88 | 2450x2400 | Ac220/DC24V | 2.2 | 1130 | 1.80x1.10x2.52 | 0.75 | |
| GTWY14-300B | 14 | 15.7 | 250 | 1.50x0.88 | 2450x2400 | Ac220/DC24V | 2.2 | 1130 | 1.80x1.10x2.32 | 0.75 | |
| GTWY15-300 | 15 | 16.7 | 250 | 1.40x0.88 | 2600x2500 | Ac220/DC24V | 2.2 | 1170 | 2.00x1.20x2.68 | 0.75 | |
| Quadruple Mast | GTWY10-400 | 10 | 11.7 | 300 | 1.40x0.80 | 2400x2300 | AC220/DC24V | 2.2 | 1100 | 1.70x1.10x2.05 | 0.75 |
| GTWY12-400 | 12 | 13.7 | 300 | 1.40x0.80 | 2400x2300 | AC220/DC24V | 2.2 | 1150 | 1.70x1.10x2.32 | 0.75 | |
| GTWY14-400A | 14 | 15.7 | 300 | 1.40x0.80 | 2450x2400 | AC220/DC24V | 2.2 | 1200 | 1.80x1.10x252 | 0.75 | |
| GTWY14-400B | 14 | 15.7 | 300 | 1.40x0.80 | 2500x2400 | AC220/DC24V | 2.2 | 1200 | 1.90x1.10x2.32 | 0.75 | |
| GTWY15-400 | 15 | 16.7 | 200 | 1.40x0.80 | 2600x2500 | AC220/DC24V | 2.2 | 1390 | 2.00x1.20x2.68 | 0.75 | |
| GTWY16-400 | 16 | 17.6 | 200 | 1.40x0.80 | 3100x3000 | AC220/DC24V | 2.2 | 1420 | 2.25x1.30x2.85 | 0.75 | |
| Multi Mast | GTWY16-420 | 16 | 17.7 | 150 | 1.45x0.90 | 3100x3000 | Ac220/DC24V | 2.2&1.1 | 1500 | 2.25X1.30X2.18 | 0.75 |
| GTWY18-420 | 18 | 19.7 | 150 | 1.45x0.90 | 3100x3000 | Ac220/DC24V | 2.2&1.1 | 1600 | 2.25X1.30X2.42 | 0.75 | |
| GTWY19-420 | 19 | 20.7 | 150 | 1.55x0.90 | 3450x3200 | Ac220/DC24V | 2.2&1.1 | 1670 | 2.25X1.40X2.52 | 0.75 |
Warranty of Aerial Work Platform with pulling device
One year
As a professional manufacturer of Aerial Work Platform with pulling device in China, we also provide clients with
Single Mast Aluminum Aerial Work Platform
Double Mast Aluminum Aerial Work Platform
Triple Mast Aluminum Aerial Work Platform
Quadruple Mast Aluminum Aerial Work Platform
Multi-Mast Aluminum Aerial Work Platform
Insulated Aluminum Aerial Work Platform
Explosion Proof Aluminum Aerial Work Platform
Truck-mounted Aluminum Aerial Work Platform
Towing Aluminum Aerial Work Platform
Mobile Dock Ramp
Stationary Dock Ramp
Mobile Scissor Lift
Self-propelled Scissor Lift
Scissor Lift with pulling device
Vehicle Carrying Scissor Lift
Stationary Scissor Lift
Material Lift
Related Products:
Single Mast Aluminum Aerial Work Platform
Double Mast Aluminum Aerial Work Platform
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1set |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | packing with pallet in PVC FILM |
| FOB Port | Shanghai |
| Packing Info | loading quantity in 20GPloading quantity in 40GP |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
