Auto Single-Head Bending Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Company type	Sino-Italian Joint Venture
Machine type	European type
Automation	Semi-Automatic
Bending	Hydraulic

Detail Description

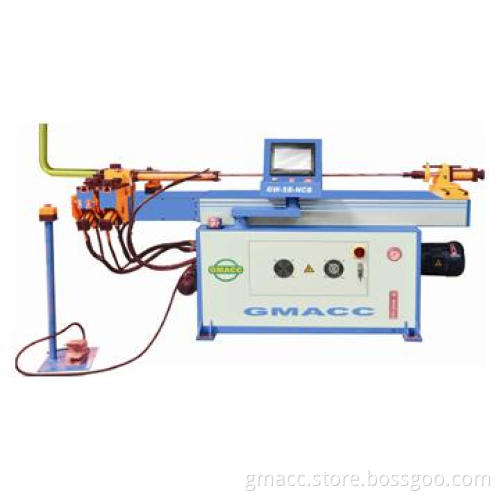

Auto Single-Head Bending Machine
Model GM-SB 18/28/38/42/50/63/76/89 NCB Series:
Characteristics of Pipe Bending Machine:It adopts imported special controlling system. The action of the machine is stable. It has mode of manual and auto, the operator can change the
Programs.This series is suitable for two-dimensional bending at high speed and in mass production.

Main Technical Parameter	Unit	18NCB	28NCB	38NCB	42NCB	50NCB	63NCB	76NCB	89NCB
Max. Bending Capacity	mm	￠18×2	￠28×2	￠38×2	￠42×3	￠50×2	￠63×4	￠76×5	￠89×10
Bending Radius Region	mm	20-150	20-180	20-200	20-250	20-250	25-350	30-350	40-400
Bending Angle Region	Degree	0-190	0-190	0-190	0-190	0-190	0-190	0-190	0-190
Effective Length Over Mandrel	mm	2000	2000	2000	2200	2200	2500	3200	4000
Oil Pressure System Motor	kw	2.2	2.2	4	5.5	5.5	7.5	7.5	11
Max. Pressure	kg/cm	160	160	160	160	160	160	160	160
Machine Dimension	mm	2300×550×1300	2500×650×1300	2500×700×1300	3000×800×1300	3000×800×1300	4200×1200×1350	5000×1200×1350	5300×1350×1200
Machine Weight	kg	1000	1300	1500	1800	1800	2500	3000	4000

Additional Information

Payment Terms	T/T, L/C
Minimum Order	1PC
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	30 working days after 30% deposit received
FOB Port	Shanghai
Loading Info	Packing suitable for long trip transportation
Packing Info	LCL or Full container
Target Market(s)	Africa(except Middle East), Eastern Europe, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
