Automatic Rotation Hydraulic Pipe Bending Machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Company type | Sino-Italian Joint Venteu |
|---|---|
| Machine Color | Blue and White |
| Certiificate | CE, ISO901 |
| Voltage | 380V |
| Metal Type | Carbon Steel, Cast Iron, Iron, Steel |
| Automation | Automatic |
| Power Type | Hydraulic |
| Raw Material | Sheet/Plate Rolling |
| Extra Services | Other |
| Machine Type | Pipe and Tube Bending Machine |
Detail Description
Three dimensional bending machine
Automatic bending machine
Hydraulic pipe bending machine

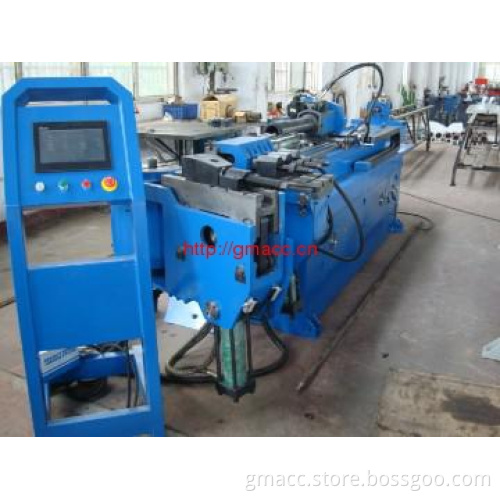

GM-SB-100NCBA Automatic three Dimensional Pipe Bending Machine
Machine CharacteristicsNC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.
Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
Three dimensional bending machine
Automatic bending machine
Hydraulic pipe bending machine
GM-SB-100NCBA Automatic three Dimensional Pipe Bending Machine
Machine CharacteristicsNC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.
Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
Automatic bending machine
Hydraulic pipe bending machine
GM-SB-100NCBA Automatic three Dimensional Pipe Bending Machine
Machine CharacteristicsNC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.
- Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ￠100*4 |
| Bending Radius Range | mm | 40-400 |
| Max. Bending Angle | ° | 190° |
| Though Effective Distance | mm | 2800 |
| Bending speed | °/sec | 25 |
| Turning speed | °/sec | 160 |
| Bending precision | ° | ±0.10 |
| Turning precision | ° | ±0.10 |
| Rotating Servomotor Power | KW | 2 |
| System Motor Power | KW | 11 |
| Oil Pump Delivery Volume | L | 30 |
| Max. Pressure | Mpa | 16 |
| L*W*H (Packaging Dimension)） | mm | 5500*1350*1200 |
| Weight | T | 5.0 |
- Configuration of Hydraulic and Electronic Control System
| Name | Manufacturer |
| Hydraulic Motor | Taiwan Guangyuan（ Imported） |
| Hydraulic Pump | Yuken （Imported） |
| Hydraulic Valve | Yuken （Imported） |
| Oil way Board | Taiwan Shanghong （Imported） |
| Cylinder | Shanghai Jingsheng |
| Oil tube | Taiwan TATUNG（Imported） |
| Touch screen | Taiwan Weinview（Imported） |
| PLC | Japan Mitsubishi（Imported） |
| Angle controller | Japan NEMICON（Imported） |
| Switch power | Taiwan Mean Well（Imported） |
| Contactor | Taiwan SHIHLIN（Imported） |
| Other Electric Parts | German SCHNEIDER（Imported） |
Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
Three dimensional bending machine
Automatic bending machine
Hydraulic pipe bending machine
GM-SB-100NCBA Automatic three Dimensional Pipe Bending Machine
Machine CharacteristicsNC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.
- Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ￠100*4 |
| Bending Radius Range | mm | 40-400 |
| Max. Bending Angle | ° | 190° |
| Though Effective Distance | mm | 2800 |
| Bending speed | °/sec | 25 |
| Turning speed | °/sec | 160 |
| Bending precision | ° | ±0.10 |
| Turning precision | ° | ±0.10 |
| Rotating Servomotor Power | KW | 2 |
| System Motor Power | KW | 11 |
| Oil Pump Delivery Volume | L | 30 |
| Max. Pressure | Mpa | 16 |
| L*W*H (Packaging Dimension)） | mm | 5500*1350*1200 |
| Weight | T | 5.0 |
- Configuration of Hydraulic and Electronic Control System
| Name | Manufacturer |
| Hydraulic Motor | Taiwan Guangyuan（ Imported） |
| Hydraulic Pump | Yuken （Imported） |
| Hydraulic Valve | Yuken （Imported） |
| Oil way Board | Taiwan Shanghong （Imported） |
| Cylinder | Shanghai Jingsheng |
| Oil tube | Taiwan TATUNG（Imported） |
| Touch screen | Taiwan Weinview（Imported） |
| PLC | Japan Mitsubishi（Imported） |
| Angle controller | Japan NEMICON（Imported） |
| Switch power | Taiwan Mean Well（Imported） |
| Contactor | Taiwan SHIHLIN（Imported） |
| Other Electric Parts | German SCHNEIDER（Imported） |
Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1 set |
| Lead Time / Delivery Time | 45 Day(s) |
| Sample Available | YES |
| Delivery Details | delivery time is 45 days after down paynt received by us. Packing is iron frame. |
| FOB Port | Shanghai |
| Loading Info | Sea transportation, Railway transportation, |
| Packing Info | L*W*H (Packaging Dimension))mm5500*1350*1200WeightT5.0 |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
