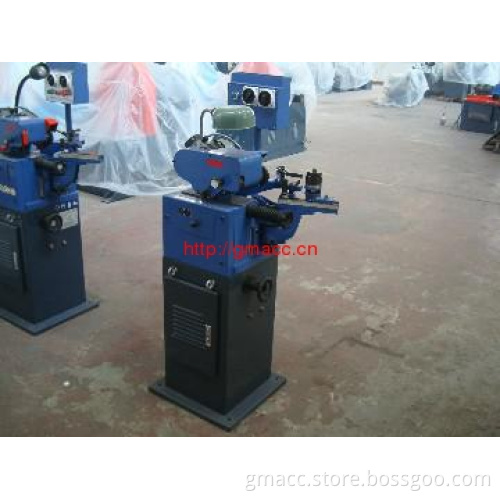

Model Full-Auto Saw Blade Sharpener
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Function | Grind and mak teeth on saw blade |
|---|---|
| Brand | GMACC |
| Rated Input Power | 400W |
| Current Type | AC |
| With Accessories Or Not | Yes |
| Disc Diameter | 230mm |
| Frequency | 50HZ-60HZ |
| Colour | Blue |
| Type | Electric Hand Grinder |
| Voltage | Safety Voltage |
| Body Materials | Iron |
| Voltage | 380V |
Detail Description
- Griding the teeth of round saw blade
- Make the teeth of saw blade
- Easy operation
- Can be adjustable or different shape of teeth
| TYPE | UNIT | GM-450 |
| THE OUT DIAMETER OF SAW BLADE |
MM |
50-450 |
| MAX. DISTANCE BETWEEN TEETH | MM | 25 |
| MAX. DEPTH OF TEETH | MM | 8 |
| MAX. THICKNESS OF SAW BLADE | MM | 8 |
| ROTATING SPPED OF GRIDING WHEEL | PRM | 4200 |
THE MACHINE INCLUDES:
GM-450 saw blade sharpener is used for grinding the saw blade. It can be used for opening the teeth and grinding as the customers’ choice
1. The construction of the machine
The body of the machine is welded by the steel plate. The upper box and the gear-box are the aluminum casting. They are processed with our Italian machine. The spare parts are very accurate.
2. The principle of design
The motor drives the grinding wheel. The head of machine can be adjust up and down. It can grind and chamfer without changing the grinding wheel.
3. The main performanc
The performance is stable. It is easy to operate and adjust the cutting angle , teeth distance and teeth depth of the saw teeth. The precision is high. It adjust quickly according the different thickness of the saw blade.
STANDARD CONFIGURATION
Hydraulic Motor Taiwan.
Other Electric Parts TAIWAN MADE
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1PC |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | Have stock |
| FOB Port | Shanghai |
| Loading Info | Packed in Iron frame. |
| Packing Info | L900*W850*H1400mm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
