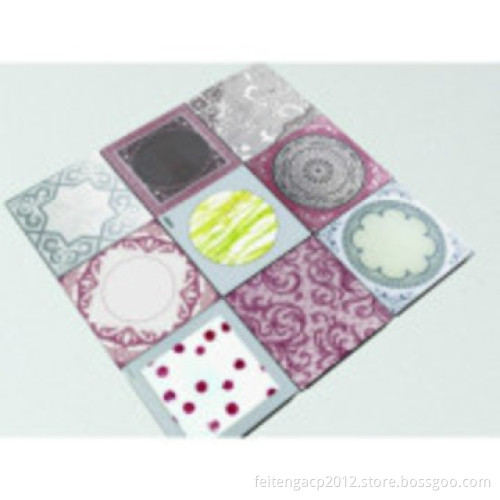

Aluminum Composite Panel for more than 15 years

Aluminum Composite Panel for more than 15 years

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	PE or PVDF
indoor	outdoor
Surface Treatment	Coating
Usage	Outdoor
Special Function	Corrosion Resisting, Fire Protection, High Temperature Resistance, Sound Insulation, Waterproof
Function	Antibacterial

Detail Description

Fluorocarbon PVDF cladding panel is made of a mixture of fluorocarbon resin with fluorine enyne as the basic monomer, paint, alcohol ester solvent and accessory ingredients.
Aluminum-magnesium alloy is the combination of the major element-aluminum and small quality of magnesium or other metallic materials for strengthening the hardness. Due to its metallic property，the heat conductivity performance and the intensity are particular obvious. Meanwhile，the alloy is relatively of high flexibility and bending and abrasion-resistance. It is light weighted and of low density and of strong anti-press property. Due to magnesium，the alloy has great anti-corrosion property. So the material can be largely applied in the outdoor building decoration with large scale.
Aluminum-manganese alloy：the element of the alloy is manganese，which has excellent forming performance，high corrosion-resistance，fine welding property and electrical conductivity. Its anti-press intensity is much higher than 1100.This kind of alloy can be applied in signs and washing machines cylinder shell.
FEITENG products are the once formation on the continuous extruding composite production line. The positive and negative aluminum material，adopting Alu-Mn or Alu-Mg alloy materials，connect the plastics with the core material fully by the polymer adhesive resin. Due to the excellent extension，manufacturing property and relatively high surface hardness guaranteed by the Alu-Mn or Alu-Mg alloy materials，the ，which is well to be installed and manufactured，is widely applied in advertising signs and curtain wall decoration.

Raw materials
1 Aluminum panel material：high intensified 3000 or 5000 series aluminum alloy
2 PE core material：poison-free low-density PE
3 Coating：PVDF,PE
Specification
Panel thickness：2-6mm，3mm-4mm is recommended
Panel width：1000-2000mm，1000mm，1220mm，1250mm，1500mm，2000mm are recommended
Panel length：5800mm（longest），2440mm，3050mm，4050mm ，5500mm are recommended
Aluminum thickness：0.2mm-0.5mm，0.2mm，0.3mm are recommended
Contrast table of different aluminum series

Series Item	1000	3000	5000
Alloy Component	Pure aluminum	Aluminum-manganese alloy	Aluminum-magnesium alloy
Surface Hardness，HB	44	47	45
Extension and ManufacturingCharacteristics，%	5	6-14	7
Bending Strength（MPa）	152	175	159
Shearing Strength（MPa）	90	105	97
Advantage	Smooth panel surface and light mass	More smooth panel and optimal rigidity	Antirust alloy withexcellent weather resistance，the back of the Aluminum Composite Panel needs not the back painting

Effect of different aluminum alloys on mechanical properties

Aluminum alloy	Thickness of aluminum	Total thickness	Coating	Bending strength（MPa）	Bending Elastic Modulus（MPa）	Perforation resistance（KN）	Shearing strength（MPa）
1100 aluminum alloy	50	4	PVDF2	127.91	30666.97	8.38	26.01
3003 aluminum alloy	50	4	PVDF2	161.11	33550.41	9.69	30.29
5005 aluminum alloy	50	4	PVDF2	133.59	31387.73	8.71	27.75
Contrast		Fig.1	Fig.2

QUALITY
   A)Under natural climate ,film coating will be no flake .no rubbles ,no vestige and no pulverization.
   B)Under common environment.no flake.no rubbles.
   C)Under common temperatures and radiation,no color deferent.
   D)According to international test standard,all the tested items are satisfied with high-class.
   E)Our products with PVDF coating which produced under GB/T17748-1999 is with 70% PVDF.and under common environment,we can guarantee 15~20 years.

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	800square meters
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	usually the standard size panel need fifteen to twenty-one days; special sizes need three weeks to four weeks.
FOB Port	Shanghai
Loading Info	By sea
Packing Info	wood pallets or in bulk
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
