Basic Info

Product Description

Product Details

Basic Specification

coating	PE
Surface Treatment	Coating
Usage	Outdoor
Function	Anti-Static
Special Function	Corrosion Resisting, Fire Protection, High Temperature Resistance, Sound Insulation, Waterproof

Detail Description

Well weather-resistance, high rigidity, easy for maintenance
Easy finishing with conventional woodworking tools. Short time needs for project
Good workability, fire-resistance, heat & sound insulation
High flexibility and impact-resistance, superior surface flatness, lightweight, rigid

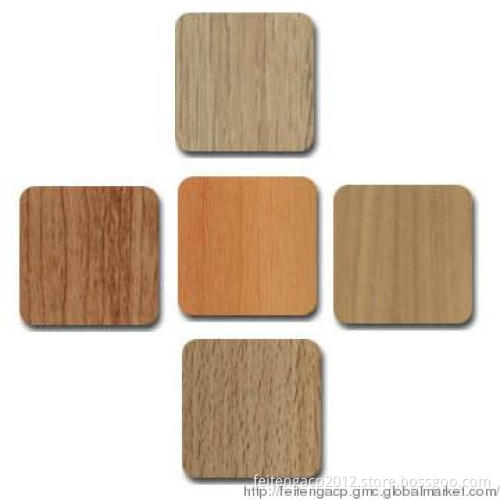

Various colours are available according your needs
Competitive price and quick delivery
Any size is accepted
Max width is 2000mm

Raw materials
1 Aluminum panel material：high intensified 3000 or 5000 series aluminum alloy
2 PE core material：poison-free low-density PE
3 Coating：PVDF,PE

Specification
Panel thickness：2-6mm，3mm-4mm is recommended
Panel width：1000-2000mm，1000mm，1220mm，1250mm，1500mm，2000mm are recommended
Panel length：5800mm（longest），2440mm，3050mm，4050mm ，5500mm are recommended
Aluminum thickness：0.2mm-0.5mm，0.2mm，0.3mm are recommended

1 The resistant of normal Aluminium Composite Panel is high, more than 1.0 × 109Ω
2 The antistatic Aluminium Composite Panel conforms to national electronic industry standard SJ/T11159-1998《floor Coating And Electrostatic Properties Of The Assembly Floor Test Method 》.

Raw material	Product specifications
Base material of aluminum panel：high strength aluminum alloy coils	thickness：3-6mm，4mm is recommended
PE core：non-toxic low density polythene	width：1000-2000mm. 1220mm，1250mm，1500mm ,2000mm are recommended
Surface coating：fluorocarbon coating	length：maximum is up to5800mm，2440mm，3050mm，4050mm are recommended
	Thickness of aluminum sheet：0.3 mm-0.5mm

Features of FEITENG Antistatic Aluminium Composite Panel

1There is no static dust adheres on the surface, offer us safe and tidy surroundings.

2Excellent chemical properties: excellent chemical stability such as high performance of acid, alkali, oil and salt resistance.

3 Excellent physical properties: high surface flatness, hardness, rigidity and strength, and low areal density.

4 Highly economical: convenient for flat transportation, processing, and molding; lowexpenses in transportation, construction and management.

Test Value as followings：

No	Item	Technical Index	Test Value	Result
1	Surface resistance	≤1.0×106Ω	2.55×104Ω	Passed
2	Volume resistance	1.0×106～1.0×109Ω	5.72×106Ω	Passed

PE/PVDF Aluminium Composite Materials-ACM, Excellence in building.

Materials:

Front side: aluminum alloy sheet coated with fluorocarbon resin (PVDF) or polyester Resin (PE)

Core: more broken-resistant polyethylene or fire-resistant polyethylene (PE)

Rear side: aluminum alloy sheet (or coated with polyester resin)

Additional Information

Payment Terms	L/C, T/T, Others
Minimum Order	500square meters
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	usually the standard size panel need fifteen to twenty-one days; special sizes need three weeks to four weeks.
FOB Port	Shanghai
Loading Info	by sea
Packing Info	wood pallets or in bulk
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
