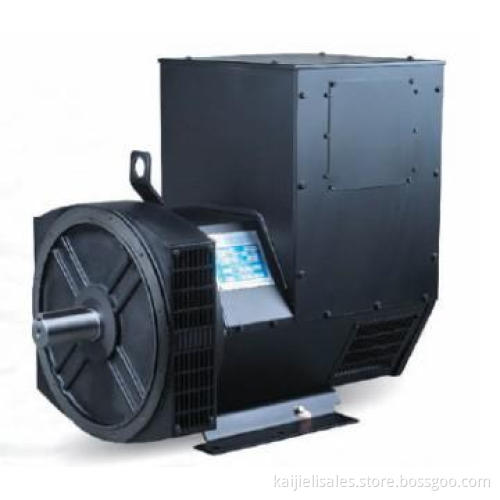

Brushless Alternator Standford Type (TWG II Series)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	optional
Frequency	50 or 60HZ
Fuel	Alternative Energy
Output Type	AC Three Phase
Rate	Other
Rated Voltage	Other
Rated Current	Other
Maximum Power	>70

Detail Description

TWGII Series 3-phase brushless synchronous Generator
Brushless, Standford Type, Standard IEC34-1, Pole Type Whole Salient, Excitation System Self-Exciting, Leads 12, Bearing Single/Double, Duty S1, Ambient Temp: -15~+40° C, Winding Pitch 2/3, PF=0.8, Stable AVR+/-1%, Instant AVR, 15%~+20%, THD≤ 3%, THF≤ 2%, TIF≤ 50, 150% Overspeed (2250rpm) lasting 2min, Voltage 110~660V, 50 or 60Hz, 3-Phase, 4-Pole(1500rpm or 1800rpm), w/AVR Control.

FEATURES:
1. Reliable AVR exciting system and optional permanent magnectic system always provide invariable excitation on all occasions.
2. Easy to be connected with power network or parallel other generators.
3. Balanced rotor, sealed single and souble ball bearings.
4. Convenient installation ans easy meaintenance, wasy maintenance, easy access to terminal. Rotating rectifier and coupling bolts.
5. Wide range of flange adapter and coupling disc for singel bearing.
6. In conformity with all main land standard.

Additional Information

Payment Terms	L/C, T/T
Minimum Order	100
Lead Time / Delivery Time	35 Day(s)
Sample Available	YES
Delivery Details	30 days after deposit
FOB Port	Fuzhou,Shanghai
Target Market(s)	North America, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
