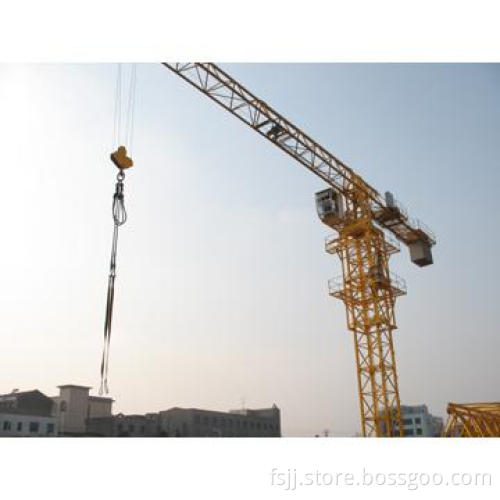

FSP6013 Topless Tower Crane (QTZ80)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Fusan Tower Crane with Manufacture License of Special Equipment People\'s Republic of China. Customer can tell Fusan the detailed specifications and Fusan can make the suitable products for customers.
Manufacturing Year: 2012
Jib Length: 60m
Free Height Under Hook: 45m
Max. Load: 6T, 8T
Tip load: 1.3T
Mast Section Dimension(m): 1.83x1.83x3
Hoisting Speed(m/min) & power: 8.5/40/80 24Kw(6T), 25/50/100 30Kw(8T)
Slewing Speed (r/min) & power: 0~0.8 2x5.5Kw frequency
Trolleying Speed (m/min) & power: 43.7/21.7 3.3/2.2kw(6T), 10/30/60 1.1/3.7/5kw(8T)
Cable specification: 3x162+2x102(6T), 3x252+2x162(8T)
Power Supply: 400V(+6% -10%)50HZ

Payment Terms	L/C, T/T
Minimum Order	1 unit
Lead Time / Delivery Time	45 Day(s)
Sample Available	NO
FOB Port	Shanghai
Packing Info	40\'HQ, 20\'GP, 40\'FR
Target Market(s)	North America, Southeast Asia, Africa(except Middle East), Mainland China, Central & Southern Asia, Middle East
