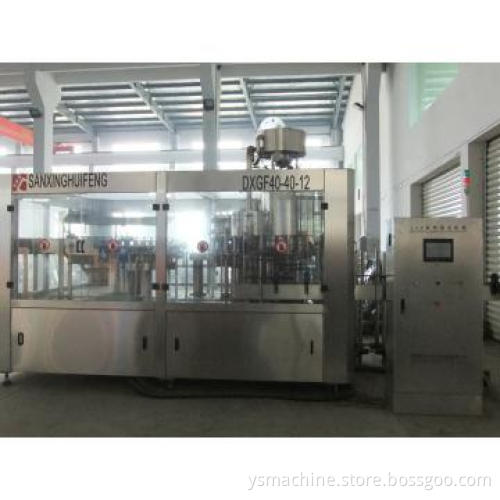

carbonated drink filling machine, gas containing filling machine

Features:
1) The machine has compact structure, complete control system, easy operation and high degree of automation.
2) The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3) The parts contacting media are made of 3304 and have no process blind angles to enable easy cleaning.
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7) The advanced programmed controller (PLC) is adopted to control the machine to run automatically.
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9) Main electric components and pneumatic components are used the world famous brand products.
10) The machine\'s operation is controlled by an advanced touch-screen that can Fulfill human-machine communication.

Main technical parameters:

Model	DXGF14/12/5	DXGF18/18/6	DXGF24/24/8	DXGF32/32/10	DXGF40/40/12
Washing heads	14	18	24	32	40
Filling heads	12	18	24	32	40
Capping heads	5	6	8	10	12
Capacity(b/h)	3000	4000	6000	8000	12000
Filling precision	≤+5mm	≤+5mm	≤+5mm	≤+5mm	≤+5mm
Power(kw)	2.2	3.75	4.8	5.5	6.3
Weight(kg)	2500	3500	4800	5600	6500
Size(mm)	2250*1700*2300	2400*1960*2300	3010*2180*2400	4000*2250*2500	4200*3000*3150
