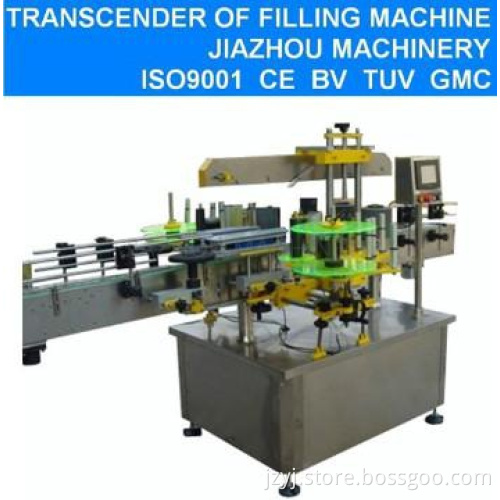

adhesive sticker labeling machine

labeling machine

Model: SWT-100

Inner diameter of label: Ø76mm

Max outer diameter of label: ≤Ø300mm

Label width: 10-150mm

Label length: 20-250mm

Bottle diameter: 20-150mm

Bottle high: 30-250mm

Label precision: ±1mm

Production capacity: 30-80 bottle/min (according to bottle and label size)

Power supply: 220V-50Hz/60Hz (according to the customer’s requirement)

Power: 750W Weight: 500Kg

Dimension:24400mm×1500mm×1400mm(L×W×H)

The machine adopts imported PLC control system, or touch switch knob control, elected Japanese Omron (Germany transparent) photoelectric device, variable speed motors, conveyor chain board and imported belt related parts.

Host design absorbed import machines’ labeler transmits way, solving the general domestic labeling unstable factors.

The machine is suitable for different bottles, easy adjustment, can be finished in a short time.

The quick printer adopts the motor drive, gas drive. The words in the ribbon are clear and clean.

The whole machine is designed to meet GMP standard.

This machine is suitable for medicine, chemical, food, commodity etc. Labeling for bottle and box of flat, square, circle, elliptic, tapered, single orientation etc.
