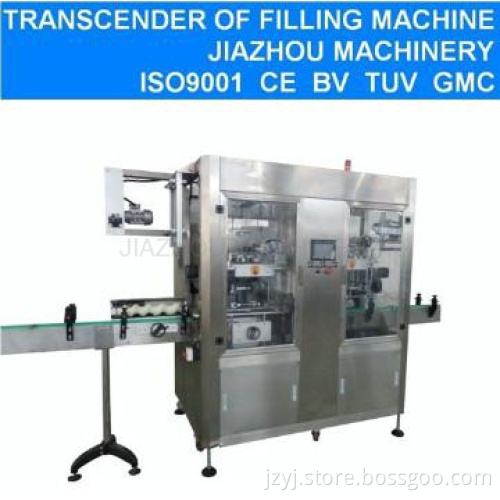

Automatic double heads sleeving label machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Automatic Grade	Automatic
Category	Packaging Machinery
Supplier Location	China(Mainland)
Processing	Packaging Machine
Processing Types	Water
Voltage	AC 3-PHASE 220V/380V
Speed	8000BPH (Length of label:100mm)
Power	6kw
Size	2500mm×860mm×2000mm
Type	Barrel, Bottles
Packaging Material	Plastic
Type	Other
Driven Type	Electric
Automatic Grade	Automatic
Material	Stainless Steel
Application	Beverage, Juice, Water

Detail Description

Product feature:
1. This machine is one of the double-heads structure design, it can sleeving bottle body and neck, finished in one time.
2. Adopt double disc feeder, can save time and ensure smooth production.
3. One machine amphibious, save space and costs.
4. The machine match the overall shield, humanized design, more safety
5. synchronization bottle opener design, bottle conveyor is not easy to shake
6. It with two sets of knives and two groups of center column, and can realize quick change without tool.
7. Conveyor and belt is adjustable synchronization, to ensure a stable high speed of label.
8. The advanced control system, color touch screen design with auxiliary button , more accord with human nature
9. High standards of electrical configuration, feeding andcuting cooperate seamlessly, label feed is soft.
10. Double heards operation, and also can be single head working, to ensure high stability of the production line
Technical parameters:
Machine size：2500mm(L)× 860mm(W)× 2000mm(H)
Weight：SUS304，1000kg
Power supply：AC 3-PHASE 220V/380V
Power：6kw
Speed：Max.8000BPH (Length of label：100mm)
Bottle Dia.：Ø20mm~Ø130mm
Knife plate using range：Ø20mm~Ø50mm，Ø50mm~Ø95mm，Ø95mm~Ø130mm
Length of label range：25mm~250mm
Label thickness：0.03mm~0.13mm
Label material: PVC/PET/OPS
Paper tube inner diameter：5\"~10\"free adjustment
Shrinking tunnel：steam (suggest)

Additional Information

Payment Terms	L/C, T/T, Credit Card, Money Order
Minimum Order	1 SET
Lead Time / Delivery Time	40 Day(s)
Sample Available	NO
Delivery Details	Wooden case
FOB Port	Shanghai
Loading Info	sea shipping
Packing Info	wooden package
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
