RCGF hot juice filling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Category	beverage filling machine
Name	Hot juice filling machine
Power(w)	7.68kw
Weight	4000kg
Voltage	380V50Hz
Driven Type	Electric
Material	Stainless Steel
Type	Isobaric Filling Machine
Application	Beverage, Juice, Other
Number Of Filling Valves	24
Automatic Grade	Automatic
Packaging Material	Plastic
Packaging Type	Bottles

Detail Description

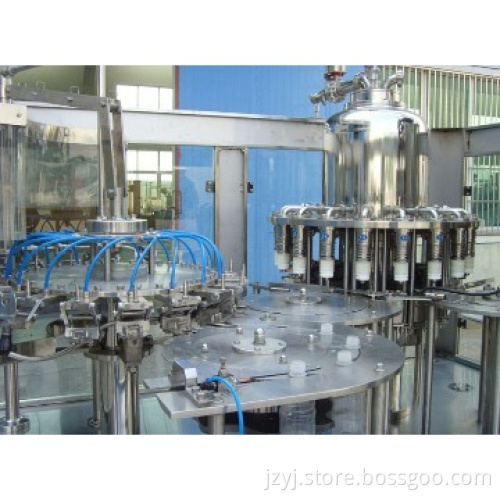

Hot Juice Filling Machine

The hot filling line consists of THREE parts: washing, filling and sealing. It is specially designed for filling fruit juice and tea drink at/below 95°c. The main parts are made of SUS304.

Hot Juice Filling Machine\'s Main Technical Parameter

Model	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12
Washing Heads	16	18	24	32	40
Filling Heads	12	18	24	32	40
Caping Heads	6	6	8	10	12
Capacity(b/h)	3000	6000	1000	14000	18000
Filling Precision	≤+5mm	≤+5mm	≤+5mm	≤+5mm	≤+5mm
Power(Kw)	2.2	3.75	4.8	5.5	6.3
Weight(Kg)	2500	3000	4000	5000	6500
Size(mm)	210015002200	245018002200	2750 21802200	360028003150	420030003150

Hot Juice Filling Machine\'s Washing Part

Hot Juice Filling Machine\'s Filling Part

Hot Juice Filling Machine\'s Sealing Part

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1set
Lead Time / Delivery Time	30 Day(s)
Sample Available	NO
Delivery Details	wooden case
FOB Port	Shanghai
Loading Info	sea shipping
Packing Info	wooden packaging
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
