semi auto carbonated drink filling line

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Warranty	one year
Voltage	380V50HZ
Power(w)	3.13kw
Driven Type	Electric
Material	Stainless Steel
Weight	2000kg
Type	Isobaric Filling Machine
Number Of Filling Valves	12
Application	Beverage
Automatic Grade	Semi-Automatic
Packaging Material	Plastic
Packaging Type	Bottles

Detail Description

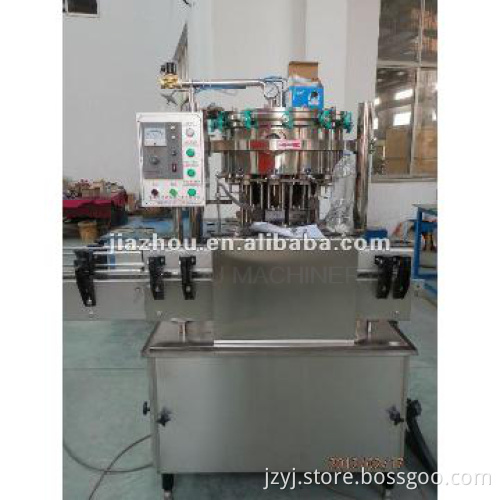

Semi Auto Carbonated Drink Filling Line

The production line includes QS auto washer, DY balanced pressure filer, FXZ cap turning machine, SSJ conveyor etc.

Carbonated Drink Filling Line\'s Main Technical Parameter

The key parts are made of stainless steel, with the features of reasonable structure, advanced technology, easy in operation, widely used, etc, it\'s the ideal production line for middle and small drink factory.

Main technology parameter

Model	Production capacity	Bottle height	Motor power
QS-12 DY-12 FXZ-1	1000-3000b/h	200-320mm	3.13kw
QS-18 DY-18 FXZ-6	2500-4600b/h	200-320mm	4.45kw
QS-18 DY-24 FXZ-6	2500-6000b/h	200-320mm	4.45kw
QS-24 DY-32 FXZ-8	3000-8000b/h	200-320mm	5.95kw

Carbonated Drink Filling Line\'s washing part

Carbonated Drink Filling Line\'s filling part

Carbonated Drink Filling line\'s sealing part

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1set
Lead Time / Delivery Time	25 Day(s)
Sample Available	NO
Delivery Details	Delivery within 25 days after payment arrival
FOB Port	Shanghai
Loading Info	sea shipping or train shipping
Packing Info	standard wooden case
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Mainland China, Middle East, North America, Northern Europe, Southeast Asia, Western & Southern Europe
