CGF drinking water washing filling capping monobloc machine
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Name | CGF drinking water filling machine |
|---|---|
| Operation | easy and safe |
| Processing Type | drinking water |
| Driven Type | Electric |
| Material | Stainless Steel |
| Weight | 2000kg |
| Number Of Filling Valves | 12 |
| Application | Beverage |
| Type | Pressure Filling Machine |
| Automatic Grade | Automatic |
| Packaging Material | Plastic |
| Packaging Type | Bottles |
Detail Description

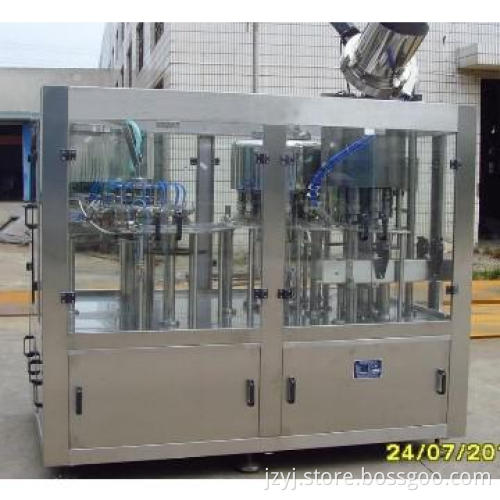

CGF drinking water washing filling capping monobloc machine
The equipment is used in production of non-soda drink, mineral and pure water in PET bottle. Washing filling and capping are integrated in one machine.
The equipment is used in production of non-soda drink, mineral and pure water in PET bottle. Washing filling and capping are integrated in one machine.
| Model | CGF16126 | CGF18186 | CGF24248 | CGF323210 |
| Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 |
| Production capacity | 3000-4000BPH | 5000-7000 | 8000-12000 | 12000-15000 |
| Suitable bottle diameter | Φ=50-100mm, H=170mm, 330-2500ml | Φ=50-100mm, H=170mm, 330-2500ml | Φ=50-100mm, H=170mm, 330-2500ml | Φ=50-100mm, H=170mm, 330-2500ml |
| Spraying pressure | 0.2-0.25Mpa | 0.2-0.25Mpa | 0.2-0.25Mpa ³ | 0.2-0.25Mpa |
| Motor power | 2.2kw | 2.5kw | 3kw | 5.5kw |
| Stainless steel | SS304 | SS304 | SS304 | SS304 |
| Electric voltage | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz |
| PLC | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Frequency converters | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Touch screen | Mitsubishi | Mitsubishi | Mitsubishi | Mitsubishi |
| Circuit contactor | Siemens | Siemens | Siemens | Siemens |
| Overall dimension mm | 2400*1650*2500 | 2500*1800*2500 | 3100*2300*2800 | 3800*2800*2900 |
| Weight | 2500kg | 3500kg | 4500kg | 6500kg |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1set |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | wooden case |
| FOB Port | Shanghai |
| Loading Info | sea shipping |
| Packing Info | wooden package |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
