0.5 liter drinking bottle pure water filling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Warranty	one year
Operation	Steady
Design	Jiazhou Pure Water Filling Machine
Power(w)	6.57kw
Weight	5500kg
Voltage	380V50HZ
Driven Type	Electric
Material	Stainless Steel
Application	Beverage, Water
Number Of Filling Valves	24
Type	Pressure Filling Machine
Automatic Grade	Automatic
Packaging Material	Plastic
Packaging Type	Bottles

Detail Description

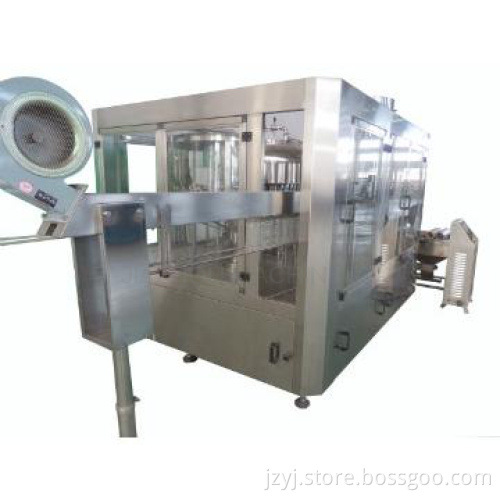

0.5 liter drinking bottle pure water filling machine

The machine deals with pure water filling, with rinsing and capping in one machine. The machine integrates rinsing, filling and capping in monobloc machine.

1. capcity: 2000-15000b/h @500ml

2. fixed liquid level pressure filling, avoiding leakage.

3. spring type rinsing clamp, rinsing empty bottle both outside and inside.

4. magnetic torque type cap screwer.

5. PLC control and touch screen

Pure Water Filling Machine\'s Main Technical Parameter

Model	CGF16126	CGF18186	CGF24248	CGF323210
Heads of washing, filling, sealing	16-12-6	18-18-6	24-24-8	32-32-10
Production capacity(b/h)	2000-4000	4000-6000	8000-10000	12000-15000
Suitable bottle diameter	Φ=40-80mm, H=150-280mm	Φ=50-100mm, H=150-320mm	Φ=50-100mm, H=150-320mm	Φ=50-100mm, H=150-320mm
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa ³	0.2-0.25Mpa
Motor power	4.23kw	5.03kw	6.57kw	8.63kw
Stainless steel	SS304	SS304	SS304	SS304
Electric voltage	380V50Hz	380V50Hz	380V50Hz	380V50Hz
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Frequency converters	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Touch screen	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens
Overall dimension mm	210015002200	245018002200	275021802200	350022002250
Weight	2000kg	3500kg	5500kg	8000kg

Pure Water Filling Machine\'s Washing

Pure Water Filling Machine\'s Filling

Pure Water Filling Machine\'s Capping

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1set
Lead Time / Delivery Time	30 Day(s)
Sample Available	NO
Delivery Details	Delivery within 30 days after receiving the payment
FOB Port	Shanghai
Loading Info	Sea shipping or train shipping
Packing Info	Standard Wooden Case
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
