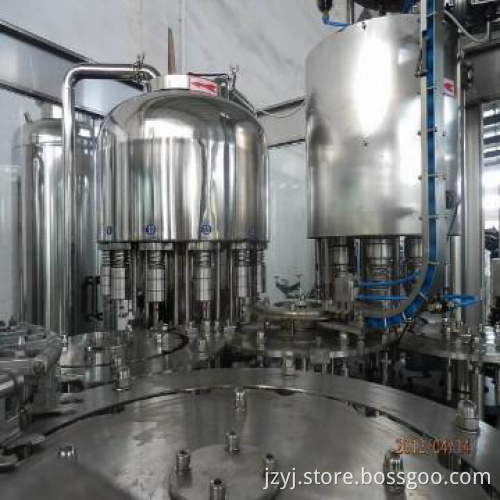

PET Plastic Bottle Filling and Sealing Machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| material | Stainless Steel 304 |
|---|---|
| Certification | CE/ISO9001 |
| Warranty | one year |
| Power(w) | 6.57kw |
| Weight | 5500kg |
| Voltage | 380V50HZ |
| Driven Type | Electric |
| Material | Stainless Steel |
| Packaging Type | Barrel, Bottles |
| Application | Beverage, Juice, Water |
| Number Of Filling Valves | 24 |
| Type | Pressure Filling Machine |
| Automatic Grade | Automatic |
| Packaging Material | Plastic |
Detail Description
plastic bottle filling and sealing machine
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF32328 |
Heads of washing, filling, sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity |
3000-4000BPH |
4000-6000 |
8000-10000 |
12000-15000 |
Suitable bottle diameter |
Φ=50-100mm, H=170mm, 330-2500ml |
Φ=50-100mm, H=170mm, 330-2500ml |
Φ=50-100mm, H=170mm, 330-2500ml |
Φ=50-100mm, H=170mm, 330-2500ml |
Spraying pressure |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa ³ |
0.2-0.25Mpa |
Motor power |
2.2kw |
2.5kw |
3kw |
5.5kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
Overall dimension mm |
2400*1650*2500 |
2500*1800*2500 |
3100*2300*2800 |
3800*2800*2900 |
Weight |
2000kg |
3500kg |
5500kg |
8000kg |
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Money Order |
|---|---|
| Minimum Order | 1 SET |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | delivery within 30 days after receiving the payment |
| FOB Port | Shanghai |
| Loading Info | sea shipping |
| Packing Info | wooden package |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
