barrel filling machine for 5 gallon barrel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Category	beverage filling machine
Material	SUS304
Operation	easy and safe
Weight	800kg
Voltage	380V
Number Of Filling Valves	Other
Driven Type	Electric
Material	Stainless Steel
Packaging Type	Barrel, Bottles
Application	Beverage, Water
Type	Pressure Filling Machine
Automatic Grade	Automatic
Packaging Material	Plastic
Power(w)	1.75kw

Detail Description

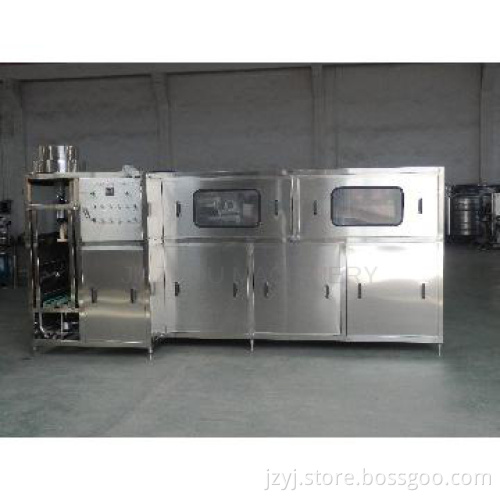

barrel filling machine for 5 gallon barrel

The filling production line integrates barrel washer, filler and sealer into one unit.

Main Techincal Parameters

Model	QGF-100	QGF-200	QGF-300
Filling heads	1	2	2
Volume(L)	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490
Capacity(B/n)	80-120	200	300
Gas pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6
Gas consumption(m³/min)	0.37	0.6	0.6
Motor power(Kw)	1.75	3.22	3.22
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3600×650×1550	3800×1100×1800	3550×1100×1800 2800×800×1800
Weight(kg)	800	2800	2800

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1set
Lead Time / Delivery Time	20 Day(s)
Sample Available	NO
Delivery Details	delivery within 20 days after receiving the payment
FOB Port	Shanghai
Loading Info	SEA SHIPPING
Packing Info	WOODEN PACKAGE
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
