5 gallon barrel filling machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Category	beverage processing machine
Name	5 gallon water barrel filling machine
Weight	700kg
Number Of Filling Valves	Other
Driven Type	Electric
Material	Stainless Steel
Type	Isobaric Filling Machine
Packaging Type	Barrel
Application	Beverage, Water
Automatic Grade	Automatic
Packaging Material	Plastic
Power(w)	1.75kw

Detail Description

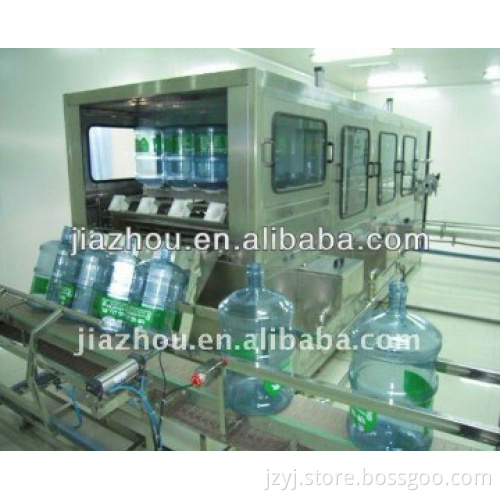

5 gallon barrel filling machine

This barrel filling line specially produces 5 gallons barreled drinking water. It integrates bottle washer,filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in barrel washer, washing solution can be used circularly. The sealer can seal barrel caps automatically.

This line equips with water spraying device to sterilize caps of barrels in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging. It is a new kind of barreled water auto-producing line, which integrates mechanism,electricity and pneumatic technologies together.

5 gallon barrel filling machine\'s main technical parameters

Model	QGF-80	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900
Filling Heads	1	1	2	3	4	6
Volume	18.9	18.9	18.9	18.9	18.9	18.9
Barrel Size	270*490	270*490	270*490	270*490	270*490	270*490
Capacity	80	150	300	450	600	900
Gas Pressure	0.4-0.6	0.4-0.6	0.4-0.6	0.4- 0.6	0.4-0.6	0.4-0.6
Gas Consumption	0.37	0.37	0.6	0.8	1	1.2
Moter Power	1.38	1.75	3.8	3.8	7.5	9
Moter Voltage	300V/50HZ	300V/50HZ	300V/50HZ	300V/50HZ	300V/50HZ	300V/50HZ
Weight	500	700	1200	1600	2000	3500
Overall Dimension	250011001600	280011001300	380013001600	420016001600	480018001600

Additional Information

Payment Terms	L/C, T/T
Minimum Order	1set
Lead Time / Delivery Time	25 Day(s)
Sample Available	NO
Delivery Details	delivery within 25 days after payment arrival
FOB Port	Shanghai
Loading Info	sea shipping
Packing Info	wooden packaging
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
