Full Automatic 19L Bottled Water Filling Machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Warranty | one year |
|---|---|
| Delivery Time | 30 days |
| Weight | 700kg |
| Voltage | 380V50HZ/60HZ |
| Number Of Filling Valves | Other |
| Driven Type | Electric |
| Material | Stainless Steel |
| Packaging Type | Barrel |
| Application | Beverage, Water |
| Type | Pressure Filling Machine |
| Automatic Grade | Automatic |
| Packaging Material | Plastic |
| Power(w) | 1.75KW |
Detail Description
Full Automatic 19L Bottled Water Filling Machine
1.This line is used for filling 3 or 5 gallon barreled water. This line consists of three parts: washer, filler, capper.
2.Washer consists of three parts: automatic decapper, automatic external brasher and automatic internal brasher.
3.Washing parts do not only include clean washing, but also include sterilizing washing. So it can make sure the sanitation condition.
4.Cap loading part has sterilizing shower so that caps can reach sterile cleaning.
19L Bottled Water Filling Machine\'s Technical Data
| Model | QGF-80 | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling Heads | 1 | 1 | 2 | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel Size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 80 | 150 | 300 | 450 | 600 | 900 |
| Gas Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4- 0.6 | 0.4-0.6 |
0.4-0.6 |
| Gas Consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Moter Power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Moter Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 500 | 700 | 1200 | 1600 | 2000 | 3500 |
| Overall Dimension | 2500*1100*1600 | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 | 4200*2300*1600 |
19L Bottled Water Filling Machine\'s Barrel loading Part
19L Bottled Water Filling Machine\'s Water Tank
19L Bottled Water Filling Machine\'s Filling Pump

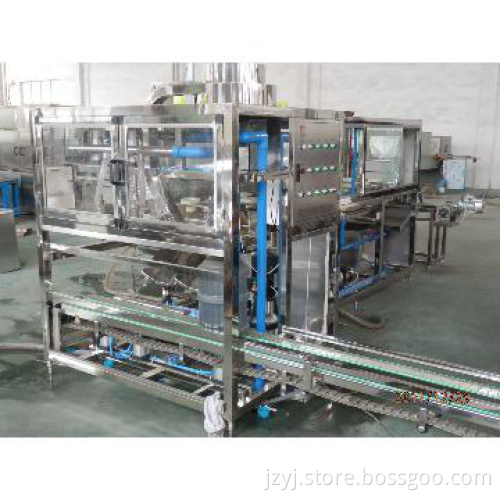

Panoramic view for 5 gallon 19L Bottled Water Filling Machine
Side View for 5 gallon 19L Bottled Water Filling Machine
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 1set |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | NO |
| Delivery Details | Delivery after the payment arrival |
| FOB Port | Shanghai |
| Loading Info | sea shipping or train shipping |
| Packing Info | standard wooden case |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
