PET plastic recycling pelletizing machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Screw design	double screw/twin screw
Machine color	according to your requriement
Granulator	PET recycling twin screw granulation line
Raw material	PET flakes,fiber
Voltage	appointed by customers
Weight	Different granulation line has different weight
Power(w)	Different granulation line has different power
Type	Recycling Granulator
Screw Design	Double-Screw
Product Capacity	2-1000kg/h
Material	PET

Detail Description

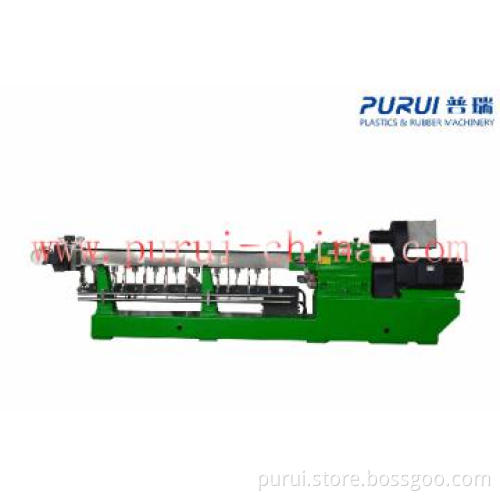

PET plastic recycling pelletizing machine

Co-rotating twin-screw extruder features: homogeneity, plasticization, filling modification, enhancement, recovery and granulation
1. The newly designed torque distribution system, high-precision grinding of hardened gear teeth, and the interlocking of lubrication system are among the reasons for the good reliability of products.
2、Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, screw L/D, the number and protocol of feeding and venting, screen change, way of granulating, and the electric control mode are optimally adjusted according to different material properties and process requirements, in consideration of the machine’s versatility in other general applications.
3.Matched with single screw feeder or twin screw feeder,feeding smoothly,easy operation.

Model	TSSK20	TSSK30	TSSK35	TSSK50	TSSK65	TSSK72	TSSK92
Screw diameter(mm)	21.7	30	35.6	50.5	62.4	71.2	91
Rotary speed(rpm)	600	400	400/600	500/600	400/500	400/500	400/500
Main motor power(kw)	4	11	11/15	37/45	55/75	90/110	220/250
L/D	32-40	28-48	32-48	32-48	32-48	32-48	32-40
Capacity(kg/h)	2-10	5-30	10-80	20-150	100-300	300-600	600-1000

Welcome to our company, and look forward to your inquiry!

Additional Information

Payment Terms	T/T, L/C
Minimum Order	1 Set
Lead Time / Delivery Time	45 Day(s)
Sample Available	NO
Delivery Details	PET plastic recycling pelletizing machineAfter the equipment accomplishment, you can appoint your engineer to our factory to test running the machine.
FOB Port	Shanghai
Loading Info	PET plastic recycling pelletizing machineFilm packing machine, wood under foot, Container equipment
Packing Info	PET plastic recycling pelletizing machineFilm packing machine, wood under foot, no recycling
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
