pvc water pipe production line 75mm- 250mm
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Raw material | PVC plastic powder |
|---|---|
| pipe diameter | 200mm- 400mm |
| line speed | 1- 8m/min |
| machine capacity | 250kg/hour |
| machine | PVC pipe making machine |
| Capacity | 400kg/hour |
| Size | 25meters |
| Type | Powder |
| Automatic | Yes |
| Screw | Twin |
Detail Description
pvc water pipe production line
Introduction:
Diameter 75mm- 250mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc, it also named PVC Pipe Production Line, PVC Pipe making machine.

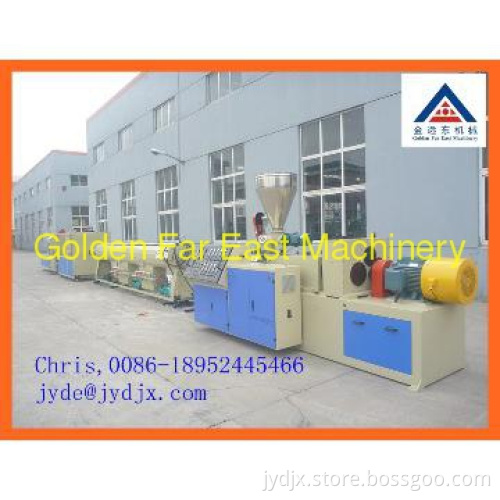

This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
Our company can also manufacture special pipe production lines. Spiral silencing pipe and core foaming pipe according to your requirements.
Technical parameter
PVC pipe extrusion line
Auxiliary machines:
Introduction:
Diameter 75mm- 250mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc, it also named PVC Pipe Production Line, PVC Pipe making machine.
This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
Our company can also manufacture special pipe production lines. Spiral silencing pipe and core foaming pipe according to your requirements.
Technical parameter
| Pipe Range | 16-63mm (single) | 16-63mm(double) | 75-160mm | 110-315mm | 315-630mm |
| Extruder type | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Motor power | 18.5KW | 37KW | 37KW | 55KW | 110KW |
| Capacity | 120kg/hour | 250kg/hour | 250kg/hour | 360kg/hour | 800kg/hour |
| Lineal speed | 12m/min | 10m/min | 6m/min | 3m/min | 1.2m/min |
PVC pipe extrusion line
- Step 1: High speed mixer
- Step 2: Screw charger
- Step 3: Twin screw extruder
- Step 4: PVC pipe mould
- Step 5: vacuum calibration tank
- Step 6: haul-offs
- Step 7: cutting machine
- Step 8: stacker
Auxiliary machines:
- Crusher
- PVC pulverizer
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 35 Day(s) |
| Sample Available | NO |
| Delivery Details | after receive all payment, delivery machines to Shanghai port |
| FOB Port | Shanghai |
| Loading Info | By sea |
| Packing Info | PE film package, wooden pallet; container packing to delivery. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
