PVC lamination ceiling board
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| size | 595*595mm 603*603mm |
|---|---|
| thickness | customized |
| surface | pvc layer |
| middle | mgo board |
| back | aluminum foil |
| Feature | Artistic |
| material | PVC |
| function | Waterproof |
| Type | PVC Ceiling |
Detail Description
PVC lamination ceiling board
White
Colored
Advantage: fireproof, various decorative patterns, not sink, washable to keep clean,heat insulation
Brief Introduction:Our Pvc lamination ceiling boards are widely used in high requirement of clean and artistic building.
Especially in high temperature area, like Middle East, Southeast Asia etc.
The aluminum foil can effectively heat insulated.
Pvc Lamination Ceiling Board Features:
1) Fireproof (3mm reach A1 Grade non-combustible) and Waterproof
2) Light weight and High intensity
3) Sound insulation and Heat insulation
4) No dust and durable
5) Avoid sink
6) Environmental protection and Healthy
Procucts data:
| Material Base | Modified magnesia cement |
| Surface material | Laminated PVC |
| Back material | Superior aluminum foil |
| Size | 603*603mm, 595*595mm, 600*1200mm |
| Thickness | 5-8mm |
| Bending strength | 15Mpa (GB/T7019-1997) |
| Density | 0.8-1.1g/cm3 (GB/T7019-1997) |
| Absorbing water rate | 15% (JC688-1998) |
| Fireproof characteristic | A grade not combustibel (GB8624-1997) |
| No comnustible (BS476 Part4) | |
| Thermal resistance | 1.14m2k/w (GB/T13475-92) |
| The corner is dealt with | Bright shelf platfrom / drops |
| Radioactivity | Not limited by the scope of application (GB6763-2000) |
| Safe | 100% does not include harmful substances such as asbestos |
Structure
superior pvc lamination+mgo ceiling board+aluminum foil

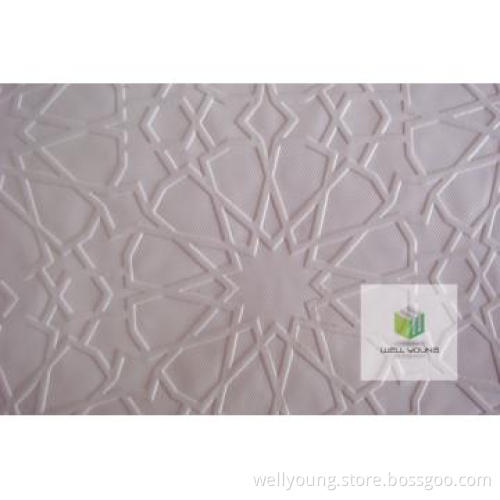

Patterns
We also accept customized.
Package :
In wooden pallet or paper box
PVC lamination ceiling board quantity
| Specification | Quantitiy/carton |
| 595*595*5mm | 12 pcs |
| 595*595*6mm | 10 pcs |
| 603*603*5mm | 12 pcs |
| 603*603*6mm | 10 pcs |
| Specification | Quantity / 20\'GP |
| 595*595*5mm | 4000 square meter |
| 595*595*6mm | 3500 square meter |
| 603*603*5mm | 4000 square meter |
| 603*603*6mm | 3500 square meter |
Place to use:
Office, meeting room, mall, hotel, restaurant, library, computer laboratory, hospital, industrial factory building, classroom and other high humidity and clean places.
Matched suspended ceiling grid can also be supplied by our factory.
| Pruduction introduction | Specification | Reference amount used (m2) |
| Main tee | Metric system 32*23*3600 | 0.225pcs/unit |
| British system 32*23*3660 | 0.225pcs/unit | |
| Cross tee | Metric system 24*23*1200 | 1.35pcs/unit |
| British system 24*23*1220 | 1.35pcs/unit | |
| Cross tee | Metric system 24*23*600 | 1.35pcs/unit |
| British system 24*23*610 | 1.35pcs/unit | |
| Wall tee | Metric system 20*22*3000 | 0.25pcs/unit |
| British system 20*22*3050 | 0.25pcs/unit |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | one container |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | According to the requirements of our customers |
| FOB Port | Shanghai |
| Loading Info | According to the requirements of our customers |
| Packing Info | According to the requirements of our customers |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
