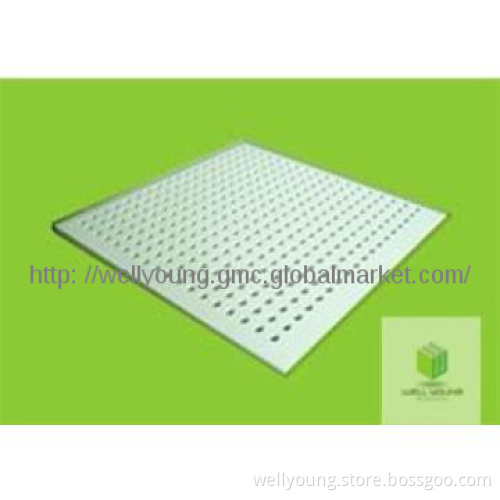

ordinary hole perfornated panel
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| material | modifeied magnesia cement |
|---|---|
| Surface Treatment | Coating |
| Special Function | Corrosion Resisting, Fire Protection, High Temperature Resistance, Sound Insulation, Waterproof |
| Function | Fireproof |
| Usage | Indoor |
| Bending Strength | 15Mpa |
Detail Description
It is used high quality magnesium cement as its substrate material, then paint emulsion paint of acrylic acid on it, and cover high quality anti-dust cloth on the surface at last.
Main characteristic
Sound insulation Fire prevention
Damp proof Easy installation and maintenance
Durable in use 100% free from asbestos
Specification (mm)
Size: 595*595 603*603 600*1200
Thickness: 5-9mm
Methods of installment
1.Make sure the interval between keel and base wall by playing thread (less than 40mm), and fix it on the roof and floor separately with expanding or penetrating screw.
2.Insert the vertical keel between roof-followed and ground-followed keels by interval of 612, fix the vertical keel with the installation card after arranging.
3.Instal the waling keel according to the panel measurement if needed.
4.Fix the panel with the self-tapping screw.
Systematic characteristics
1.Can be used under the situation that wall is extremely uneven
2.Can lay various kinds of warm-keeping and thermal insulators in the cavity. Propose to use the rock cotton of 50-100kg/m2
3.Applicable for laying the pipeline inside the wall
4.Unique visual effect after special disposal
1 Based wall
2 Roof-followed keel
3 EronAcoustic perforated panel
4 Waling keel
5 U fixing clip
6 Sound absorption rock cotton 50-100Kg/m2
7 Vertical keel
8 Reinforced fiberglass belt
9 Spring putty
10 Washboard
11 Ground-followed keel
12 Expanding bolt
13 Self-tapping screw
14 Roof base
15 Floor base
Application
It can be used in computer lab, subway,cinema,broadcast station, TV station, spinning mill,
factory, gym and other large public places.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 500pcs |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | we will arrange delivery 20 days after raceipt of deposit |
| FOB Port | Shanghai |
| Loading Info | by ship |
| Packing Info | in bulk ang in wooden pallet |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
