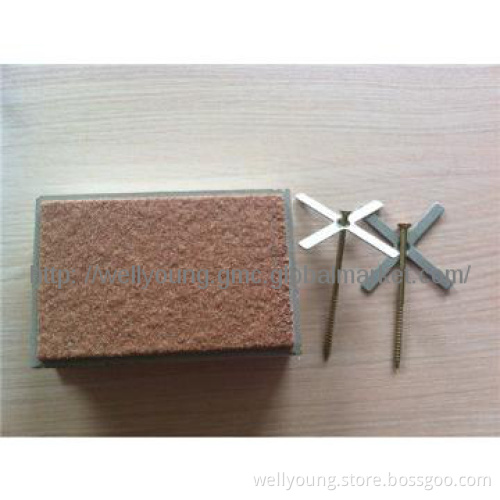

EPS exterior thermal insulation wall panel
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | colorful |
|---|---|
| size | 900*900mm 600*600mm 600*1200mm |
| Density | 18-22kg/m3 |
| intensity of wind | >8KPa(equal to the typhoon of 16 force) |
| Non-flammability | Grade B1 |
| Type | Other |
| Panel Material | Nonmetal |
Detail Description
Performance index
| Non-flammability : | Grade B1 |
| Density | 18-22kg/m3 |
| thermal conductivity | <=0.041 /w/(m.k) |
| Water absorption | <=50g/m2 |
| water permeability | there is no drop of water to emerge on the back |
| dimension error | <=0.3% |
Basic specification
| size: | 900*900mm 600*600mm 600*1200mm |
| The thickness of the whole panel: | 20-100mm |
| The thickness of the surface layer: | 3-5mm |
| smoothness: | +-1.5mm/m |
| form and position tolerance of four sides: | +-1.0mm |
Main indexes
| The weight of the finished wall panel layer: | grade B1-B2 6kg/m3-10kg/m3 |
| grade A1 10kg/m3-15kg/m3 | |
| Impermeability pressure: | In line with the requirements of JG-149-2003 |
| Freezing and thawing coefficient: | In line with the requirements of JG-149-2003 |
| The thermal insulation coefficient: | In line with the requirements of GB/T10295-2008 |
| Surface treatment: | Natural |
| paved with Inorganic pigment | |
|
Electrostatic spray |
Patterns
Nine outstanding traits of EPS insulation exterior wall board.
1. Environmental protection
2. Energy-saving
3. Fire prevention.
4. Lightweight and reliability
5. Ageing-resistant and good associability
6. Extraordinary waterproofing
7. Security
8. Simple construction and high performance price ratio
9. Flexible and convenient production
Using palce
EPS panels are widely used in construction, insulation, packaging, frozen, daily necessities, industrial casting etc. And also can be used to exhibition venue, cabinet, advertising signs and toys making. At present, in order to meet the national building energy efficiency requirements, the boards are mainly used in the wall exterior insulation, wall insulation, floor heating.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 500PCS |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 15-20 days within the receipt of deposit |
| FOB Port | ZhangJiaGang |
| Loading Info | shipping by vessels or trains according your requests |
| Packing Info | in wooden pallet or carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
