Basic Info
Product Description
Product Description
Basic Specification
| Tensile strength after aging | ≥10Mpa |
|---|---|
| Color | black,white,yellow,red and so on |
| Working temperature | -55~125℃ |
| Flame retardant performance | v w-1 |
| Tensile strength | ≥12Mpa |
| Number Of Conductors | Other |
| Conductor Material | Aluminum |
| Insulation Material | PE |
| Type | Protective Tube |
Detail Description

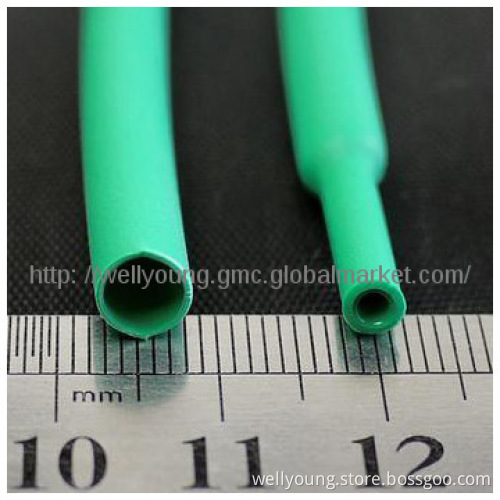

Thin-wall tubing
Product Features: Halogen-free Flame Retardant Heat Shrink Tubing thin polymer using high-quality, scientific formula, machinery of hybrid polymer alloy molding after electron accelerator radiation crosslinking, continuous expansion. Products are eco-friendly, soft, flame retardant, shrink fast, stable performance.
Material: PE, flame resistance: UL224, voltage 300V, 600V
Operating temperature: -55 ℃ to +125 ℃, minimum shrink temperature: 80 ℃, fully shrink temperature.: 110 ℃.
Meet the RoHS environmental requirements, the product through UL, SGS certified.
Main use: widely used in wire connections, solder joint protection, wire ends, wire harnesses and electronic components for the protection and insulated; wires and other product identification.
The performance index
Product Features: Halogen-free Flame Retardant Heat Shrink Tubing thin polymer using high-quality, scientific formula, machinery of hybrid polymer alloy molding after electron accelerator radiation crosslinking, continuous expansion. Products are eco-friendly, soft, flame retardant, shrink fast, stable performance.
Material: PE, flame resistance: UL224, voltage 300V, 600V
Operating temperature: -55 ℃ to +125 ℃, minimum shrink temperature: 80 ℃, fully shrink temperature.: 110 ℃.
Meet the RoHS environmental requirements, the product through UL, SGS certified.
Main use: widely used in wire connections, solder joint protection, wire ends, wire harnesses and electronic components for the protection and insulated; wires and other product identification.
The performance index
| Test project | Test conditions | Standard | Test results |
| Tensile strength | UL224 | ≥12Mpa | |
| Elongation at break | UL224 | ≥400% | |
| The tensile strength after aging | 7 days after placing 158 ℃ oven |
UL224 | ≥10Mpa |
| The Elongation at break after aging | 7 days after placing 158 ℃ oven |
UL224 | ≥300% |
| Thermal deformation test | 131℃, an hour | UL224 | ≤25% |
| Thermal shock test | 250℃, four hours | UL224 | No rupture |
| Elasticity test | 158℃, placing oven for 7 days |
UL224 | No rupture, no permanent deformation |
| Copper corrosion test | 158℃, placing oven for 7 days |
UL224 | No corrosion |
| Volume resistivity | GB1410 | ≥1014Ωcm | |
| Insulation test | GB1410 | 2.5kv60 seconds without breakdown | |
| The compressive strength of the power frequency | GB1410 | ≥10kv | |
| Breakdown strength | GB1410 | ≥25kv/mm | |
| Insulation test after aging | 158℃, placing oven for 7 days |
UL224 | 2.5kv60 seconds without breakdown |
| The compressive strength of the power frequency after aging | 158℃, placing oven for 7 days |
UL224 | ≥10kv |
| Bending test at low temperature | -30℃, After an hour | UL224 | No rupture |
| Longitudinal contraction ratio | 200℃ Drying shrinkage | UL224 | ±5% |
| Partial wall ratio | UL224 | ≤30% | |
| Flame retardant properties | VW-1 | UL224 | pass |
| Complete shrinkage temperature | UL224 | 90℃（3 mins） |
Standard Size
| Specifications (mm) |
I.D. Before shrinking(mm) |
Wall thickness before shrinking(mm) | I.D. After shrinking(mm) |
Wall thickness after shrinking(mm) |
Length Per Cotl (mm) |
| 1.0/0.5 | 1.4±0.3 | 0.2±0.05 | 0.4±0.1 | 0.4±0.05 | 200 |
| 1.5/0.75 | 1.9±0.3 | 0.2±0.05 | 0.6±0.1 | 0.4±0.05 | 200 |
| 2.0/1.0 | 2.4±0.3 | 0.20±0.05 | 0.9±0.1 | 0.40±0.1 | 200 |
| 2.5/1.25 | 2.9±0.3 | 0.20±0.05 | 1.1±0.1 | 0.40±0.1 | 200 |
| 3.0/1.5 | 3.4±0.3 | 0.20±0.05 | 1.4±0.1 | 0.40±0.1 | 200 |
| 3.5/1.75 | 3.9±0.3 | 0.20±0.05 | 1.6±0.1 | 0.40±0.1 | 200 |
| 4.0/2.0 | 4.4±0.3 | 0.20±0.05 | 1.8±0.1 | 0.40±0.1 | 200 |
| 5.0/2.5 | 5.4±0.3 | 0.25±0.05 | 2.3±0.2 | 0.50±0.1 | 100 |
| 6.0/3.0 | 6.4±0.4 | 0.25±0.05 | 2.8±0.2 | 0.50±0.1 | 100 |
| 7.0/3.5 | 7.4±0.4 | 0.25±0.05 | 3.3±0.2 | 0.50±0.1 | 100 |
| 8.0/4.0 | 8.4±0.4 | 0.25±0.05 | 3.8±0.2 | 0.50±0.1 | 100 |
| 9.0/4.5 | 9.4±0.4 | 0.25±0.05 | 4.3±0.2 | 0.50±0.1 | 100 |
| 10.0/5.0 | 10.5±0.4 | 0.25±0.05 | 4.8±0.2 | 0.50±0.1 | 100 |
| 11.0/5.5 | 11.5±0.4 | 0.25±0.05 | 5.3±0.2 | 0.50±0.1 | 100 |
| 12.0/6.0 | 12.5±0.4 | 0.30±0.1 | 5.7±0.2 | 0.60±0.1 | 100 |
| 13.0/6.5 | 13.5±0.4 | 0.30±0.1 | 6.2±0.3 | 0.60±0.1 | 100 |
| 14.0/7.0 | 14.5±0.4 | 0.30±0.1 | 6.7±0.3 | 0.60±0.1 | 100 |
| 15.0/7.5 | 15.5±0.5 | 0.30±0.1 | 7.2±0.3 | 0.60±0.1 | 100 |
| 16.0/8.0 | 16.5±0.5 | 0.30±0.1 | 7.7±0.3 | 0.60±0.1 | 100 |
| 18.0/9.0 | 19.0±0.5 | 0.30±0.1 | 8.7±0.3 | 0.60±0.1 | 50 |
| 20.0/10.0 | 20.8±0.5 | 0.30±0.1 | 9.7±0.3 | 0.60±0.1 | 50 |
| 22.0/11.0 | 22.8±0.8 | 0.30±0.1 | 10.0±1.0 | 0.60±0.1 | 50 |
| 25.0/12.5 | 25.8±0.8 | 0.35±0.1 | 12.0±1.0 | 0.70±0.1 | 25 |
| 28.0/14.0 | 28.8±0.8 | 0.35±0.1 | 13.0±1.0 | 0.70±0.1 | 25 |
| 30.0/15.0 | 30.8±0.8 | 0.35±0.1 | 14.0±1.0 | 0.70±0.1 | 25 |
| 35.0/17.5 | 35.8±0.8 | 0.4±0.1 | 16.0±1.0 | 0.80±0.1 | 25 |
| 40.0/20.0 | 41.0±1.0 | 0.4±0.1 | 19.0±1.0 | 0.80±0.1 | 25 |
| 50.0/25.0 | 51.0±1.0 | 0.4±0.1 | 24.0±1.0 | 0.80±0.1 | 25 |
Package
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 15 day within receipt of deposit |
| FOB Port | Shanghai,ZhangJiaGang |
| Loading Info | shipping by vessels or trains according your requests |
| Packing Info | In box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
