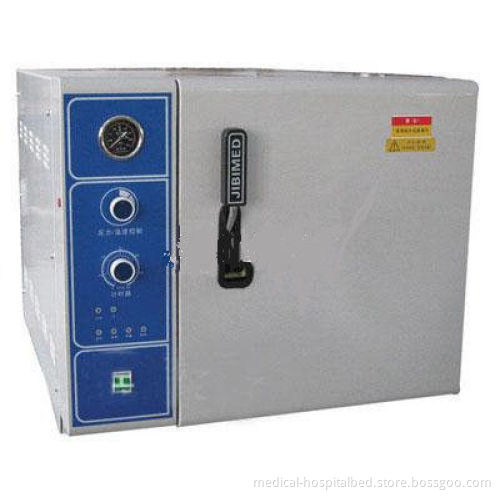

Class N Pressure Vacuum Steam Autoclave Sterilizer For Surgical / Dental
  • Class N Pressure Vacuum Steam Autoclave Sterilizer For Surgical / Dental
Class N Pressure Vacuum Steam Autoclave Sterilizer For Surgical / Dental

Class N Pressure Vacuum Steam Autoclave Sterilizer For Surgical / Dental

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Application: Medical, Dental, Surgical Class: Class N
Feature: Vacuum, Automatic, Pressure, Auto Name: Autoclave, Sterilizer
Type: Desktop Volume: 20L



Class N Pressure Vacuum Steam Autoclave Sterilizer For Surgical / Dental



Description:



1. Indicator light indicates working state.

2. For 4~6 minutes rapidly sterilizing.

3. Sterilizing temperature and time can be preset.

4. Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5. Over temperature & over pressure auto-protection.

6. Safe protection of water lacking.

7. Exhaust the cool air automatically.

8. Door safety lock system.

9. With three stainless steel sterilizing plates.

10. The chamber of the sterilizer is made of stainless steel.

11. Automatically shut off with beep reminding after sterilization.





Applications:



YA-XD series desktop Sterilizer is used in dentistry, ophthalmology, operating room, supply room and other medical and health departments for solid equipment, dressings, rubber products and other item’s sterilization.





Specifications:



MODEL TECHNICAL DATA

YA-XD20J

YA-XD24J

YA-XD35J

YA-XD50J

Sterilizing chamber volume

20L

(φ250×420 mm)

24L

(φ250×520 mm)

35L

(φ300×500 mm)

50L

(φ340×550 mm)

Working pressure

0.22Mpa

Working temperature

134℃

Adjustment  of

temperature

105-134℃

Timer

0-60 min

Heat average

≤ ± 1℃

Power

1.5 KW / AC220V 50Hz

2.7 KW / AC220V 50Hz

Sterilizing plate

340×200×30 mm

 (3piece)

400×200×30 mm

 (3piece)

400×200×30 mm

 (4piece)

500×250×30 mm

(4piece)

Dimension

480×480×384 mm

580×480×384 mm

730×550×510 mm

770×600×540 mm

Package dimension

700×580×500 mm

800×580×500 mm

820×680×650 mm

880×730×700 mm

G. W/N.W

43/38 kg

50/44 kg

95/80 kg

112/93 kg





About Us:



1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates

2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.

3. Besides our own models, we also provide OEM/ODM service for some well-known brands

4. We provide 1-2 year warranties and life-time training and after-sales service
