Mobile Emergency Rescue Patient Trolley Stretcher For Ot Room
  • Mobile Emergency Rescue Patient Trolley Stretcher For Ot Room
Mobile Emergency Rescue Patient Trolley Stretcher For Ot Room

Mobile Emergency Rescue Patient Trolley Stretcher For Ot Room

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Application: Hospital, Ward, ICU, Rescue Apply Crowd: Patient
Feature: Mobile, Adjustable, Automatic Material: PP Side Rails
Name: Patient Trolley, Ambulance Trolley, Emergency Trolley Type: Hospital Furniture



Mobile Emergency Rescue Patient Trolley stretcher For OT Room



Quick Detail:



Patient transfer connecting stretcher for OT room

  1. CE&ISO certified patient transfer connecting stretcher
  2. Aluminum alloy railway for linking two separate carts, which can be raised and lowered for adjustment
  3. When the two small carts are adjusted to the same level, the stretcher can slide smoothly, and when the stretcher slides to any separate cart, it can be automatically locked and equipped with safety device
  4. An advanced centrally controlled brake system is used for both separate small carts in order to make them more stable when linking up and running





Description:



1pc stretcher made of PP material, with 2pcs PP side rails, and the back section can be lifted up to 75°by gas spring control

2pcs separated hand-over carts, which can prevent cross infection

Aluminum alloy railway for linking two separate carts, which can be raised and lowered for adjustment

When the two small carts are adjusted to the same level, the stretcher can slide smoothly, and when the stretcher slides to any separate cart, it can be automatically locked and equipped with safety device

An advanced centrally controlled brake system is used for both separate small carts in order to make them more stable when linking up and running





Technical parameters:



Item

Patient transfer connecting stretcher for OT room

Model

YA-J2A

Technical Parameters(3-Functions)

Overall size (L*W*H)

3650*640*640-970mm

Backrest max upward angle of stretcher

75°±5°

Height adjustable

640-970mm

Silent wheels with central locking system

Dia 125mm(5”)

Loading capacity

225kgs

PP side rails

2pcs, collapsible

Packing

Carton or wooden case

Side rails

2 pcs, PPaterial, anti-bacteria

I. V pole

1 pc

I. V pole sockets

2 pcs

Wheels

8 pcs

Drainage Hook

4 pcs

Mattress surface board

1 set (PP material)

Gas spring

1 pc

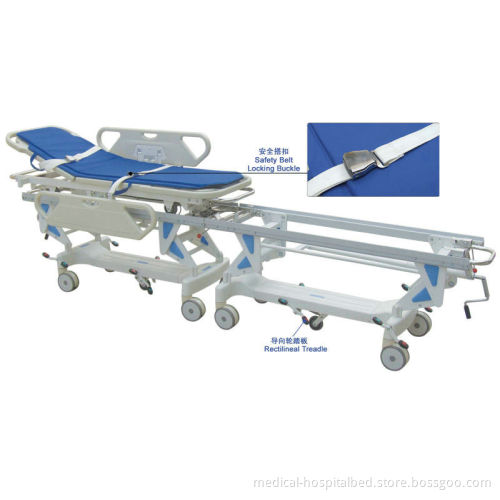

Pictures of trolley:



Packing:



Our factory:



Accessories for bed:





Competitive Advantage:



1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates

2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.

3. Besides our own models, we also provide OEM/ODM service for some well-known brands

4. We provide 1-2 year warranties and life-time training and after-sales service
