Comfortable Hydraulic And Electric Gynecological Chair For Female
  • Comfortable Hydraulic And Electric Gynecological Chair For Female
  • Comfortable Hydraulic And Electric Gynecological Chair For Female
  • Comfortable Hydraulic And Electric Gynecological Chair For Female
Comfortable Hydraulic And Electric Gynecological Chair For Female
Comfortable Hydraulic And Electric Gynecological Chair For Female
Comfortable Hydraulic And Electric Gynecological Chair For Female

Comfortable Hydraulic And Electric Gynecological Chair For Female

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Application: Gynecological, Obstetric, Surgery, Hospital Apply Crowd: Patient, Female
Feature: Multi-Function, Multifunction, Height Adjustable, Comfortable Material: Once-Shaped Polyurethane Mattress
Name: Gynecological Chair Power Source: Hydraulic, Electric



Comfortable Hydraulic And Electric Gynecological Chair For Female



Quick Detail:



Electric Labor Delivery Bed for maternal use

  1. CE&ISO certified electric labor delivery bed
  2. Side rails: Artificial leather with steel frame
  3. Imported Denmark Linak motors for movements of HI-LO, back section, separation of leg section, seat section
  4. Anti-rust treated enameled steel structure
  5. With one pillow for lying-in woman rest
  6. Mattress surface: Epoxy coated steel base
  7. Central braking system for all wheels in diameter of 150mm
  8. Leg section can be folded up and then be separated
  9. The bed can be lowered down quickly in case of emergency





Description:



Mattress surface: Enameled steel base

Once-shaped polyurethane mattress, which is waterproofing, also with an extra PU cover for pelvic section

Side rails: 2pcs, artificial leather cover with steel frame, with handset remote controller for movements, collapsible

Four 50mm castors and we can make the castors anchor to the floor by wrench

Imported Denmark Linak motors for movements of HI-LO, back section, separation of leg section, seat section

The leg section should be folded up at first, then the 2 parts can be separated together or individually

The bed can be lowered down quickly in case of emergency by one pedal

With leg support holder, waist grab handle, footrest, filth basin, pillow, bed

cushion, chassis, sliding platform for newborn baby

I.V. drip pole and drainage hooks available





Technical parameters:



Item

Multi-function electric maternity bed

Model

YA-C101B01

Technical Parameters(3-Functions)

Overall size (L*W*H)

2000*920*590-1000mm

Sliding platform for newborn baby

500*540mm

Backrest max upward angle and folding down angle

65°(fold up)

5°(fold down)



Seat section turning upward

≥20°

Leg section telescopic distance

60mm

Leg section fold upward

Leg section fold outward

≥20°(upward)

≥30°(outward)

Height adjustable

590-1000mm

Foot rest fold upward

≥35°

Side rail turn over

180°

Castors

Dia 50mm(2”)

Loading capacity

235kgs

Artificial leather side rails

2pcs, collapsible

Packing

Wooden case

Side rails

2 pcs, Artificial leather with steel frame, anti-bacteria

I. V pole

1 pc

I. V pole sockets

2 pcs

Wheels

4 pcs

Drainage Hook

2 pcs

Electro-Hydraulic system

1 set

Mattress surface board

1 set

Mattress

1 pc

Pillow

1 pc

Platform for newborn baby

1 pc

Waterproof cushion

1 pc

Seat cover

1 pc

Waist grab handle

1 pair

Foot-rest

1 pair

Leg support holder

1 pair

ABS filth basin

1 pc

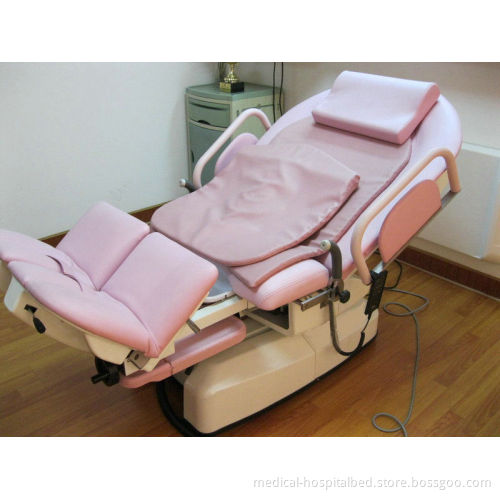

Pictures of LDR bed:



With leg section separated:



Sliding platform for newborn baby:



Packing:



Our factory:



Accessories for bed:



Competitive Advantage:



1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates

2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.

3. Besides our own models, we also provide OEM/ODM service for some well-known brands

4. We provide 1-2 year warranties and life-time training and after-sales service
