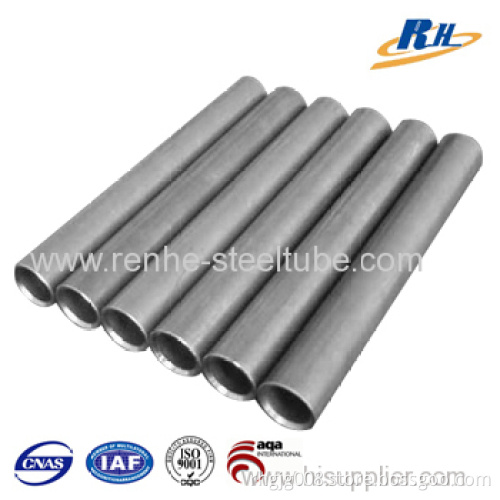

Cold Drawn Steel Tube 6mm Outside Diameter

Cold Drawn Steel Tube 6mm Outside Diameter

Specifications
Cold drawn precision seamless steel tube
DIN 2391, EN 10305-1, EN 10305-4, BS6323, ISO8535

Cold Drawn Steel Tube 6mm Outside Diameter

DIN 2391, EN 10305-1, EN 10305-4, BS6323 precision seamless steel tube for automotive industry and hydraulic system

OD 6mm, wall thinkness 1mm, ,1.2, 1.5, 1.5mm, 2mm

 Production range: OD from 3.75mm to 70mm; wall thickness up to 10mm

Delivery conditions:

Precision tubes are delivered in following conditions

BK (+C) Cold finished/hard (cold finished as drawn).
No heat treatment after last cold forming process.
BKW (+LC) Cold finished/soft (lightly cold worked).
After last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed.
After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed.
After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized.
After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.

Tests: 100% eddy current test, chemical and mechanical inspection, size checking and others

Certificates: according to EN 10204 3.1 b

Packing: Bundles or boxes

SURFACE TREATMENTS

1. Bare Tube (No coating): Bright and smooth, Surface Roughness both inner and outer surface  0.2Ra Maximum for special requirement

2. Surface Coating

 A. Silver galvanized

 B. Yellow galvanized

 C. Olive green coated

Layer thickness: 8-20um, Salty Spray Test: 48-150 hours

3.  Black phosphate

APPLICATIONS

1. Automotive fields

 A. Fuel injection lines/nozzles

 B. CNG (Compressed Nature Gas) tube-- Burst pressure: 1307Bar, Working Pressure: around 350bar

C. Drive transmission: Steering column elements

 D. Gear shafts, hand brake, front axles, airbag inflators, stabilizers, seat fasteners, front-wheel drive shafts

2. Hydraulic Fields

A. Hydraulic circuits (HPL), pneumatic lines, and hydraulic suspension

B. Hydraulic cylinders (HPZ)
