Basic Info

Product Description

seamless for Hydraulic and Pneumatic Tubes EN10305-4

Standard: EN10305-4
Size(mm): O. D.: 6.0~80W. T.: 0.5-10 L: Max 12000

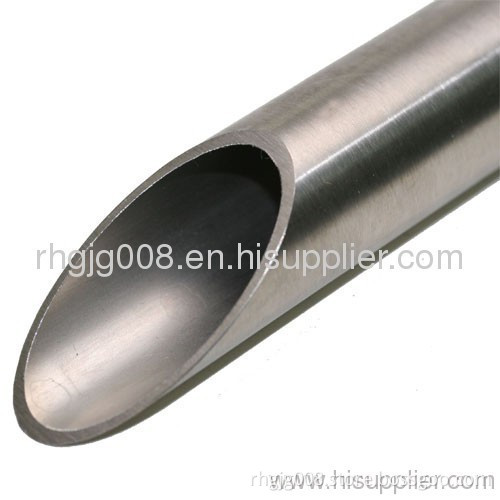

Product Name: Seamless for Hydraulic and Pneumatic Tubes
Standard: EN10305-4
Application: For hydraulic and pneumatic power systems

Delivery condition: Hot rolled, Cold worked, Annealed, Normalized, Stress Released
Certificate: ISO9001 TUV
Packing:
1. Standard export bundle wrapped with strong steel strip
2. Wooden case
3. Nylon packed
Payment: T/T
Delivery: Within 20 days of order confirmation

Your special requirement is highly welcomed and will be fulfilled.
We always provide highest quality seamless pipe/tube and best service.

Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Al ≥
E215	0.10	0.05	0.70	0.025	0.025	0.025
E235	0.17	0.35	1.20	0.025	0.025	-
E355	0.22	0.55	1.60	0.025	0.025	-

Table2: Permissible deviations of the product analysis from the specified limits given in Table1

Element	Specified limit of thecast analysis % by mass	Permissible deviationof the Product analysis % by mass
C	≤ 0.22	+0.07
Si	≤ 0.55	+0.05
Mn	≤ 1.60	+0.1
P	≤ 0.025	+0.005
S	≤ 0.015	+0.003
AL	≤ 0.025	-0.005

Table3: Mechanical Properties

Grade	Yield strengtha Rehmin Mpa	Tensile strengtha Rmmin Mpa	Elongation A min %
E215	215	290-430	30
E235	235	340-480	25
E355	355	490-630	22

seamless for Hydraulic and Pneumatic Tubes EN10305-4
