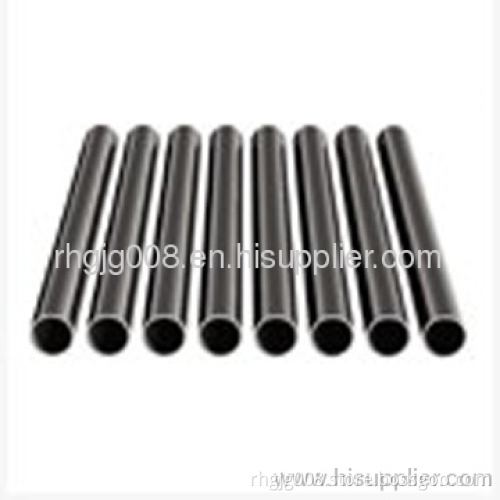

Din1630 St37.4 Nbk Precision Cold Drawn Pipe
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
DIN1630 St37.4 NBK Precision Cold Drawn Pipe
Standard: DIN2391, EN10305-1, EN10305-4
Steel grade: St35, St37, St45, St52, E235, E355
Size(mm): O. D.: 3.0-114.0mm W. T.: 0.5-10mm L: Max 14000mm
Steel grade: St35, St37, St45, St52, E235, E355
Size(mm): O. D.: 3.0-114.0mm W. T.: 0.5-10mm L: Max 14000mm
Condition: GBK(+A) NBK(+N), BK(+C)
Delivery condition: Hot rolled, Cold worked, Annealed, Normalized, Stress Released
EN10204/3.1 test certificate be presented
Application: For Auto use, machinery use, Oil cylinder tube, Motorcycle shock reducer steel tubes, Auto shock reducer inner cylinder.
Delivery condition: Cold worked, Annealed, Normalized, Stress Released.
EN10204/3.1 test certificate be presented
Application: For Auto use, machinery use, Oil cylinder tube, Motorcycle shock reducer steel tubes, Auto shock reducer inner cylinder.
Delivery condition: Cold worked, Annealed, Normalized, Stress Released.
Packing:
1. Standard export bundle wrapped with strong steel strip
2. Wooden case
3. Nylon packed
1. Standard export bundle wrapped with strong steel strip
2. Wooden case
3. Nylon packed
Your special requirement is highly welcomed and will be fulfilled.
We always provide higher quality seamless pipe/tube and best service.
Delivery condition: Cold worked, Annealed, Normalized, Stress Released
+C |
Cold drawn / hard. After the last cold forming no heat treatment. |
+LC |
Cold drawn / soft. After the last heat treatment follows the cold drawing there is a light finishing pass. |
+SR |
Cold drawn and stress relieved annealed. After the final cold drawing process the tubes are stress relieved
annealed in a controlled atmosphere.
|
+A |
Annealed. After the last cold drawing process the tubes are annealed in a controlled atmosphere. |
+N |
Normalized. After the last cold drawing process the tubes are annealed in a controlled atmosphere. |
Grade |
Chemical Composition ( % ) |
||||
C max |
Si max |
Mn |
P max |
S max |
|
St 35 |
0.17 |
0.35 |
≥ 0.40 |
0.025 |
0.025 |
St 45 |
0.21 |
0.35 |
≥ 0.40 |
0.025 |
0.025 |
St 52 |
0.22 |
0.55 |
≤ 1.60 |
0.025 |
0.025 |
Steel grade |
Chemical Composition ( % ) |
||||||
Steel name |
Steel number |
C max |
Si max |
Mn |
P max |
S max |
Al min |
E215 |
1.0212 |
0.10 |
0.05 |
0.70 |
0.025 |
0.025 |
0.025 |
E235 |
1.0308 |
0.17 |
0.35 |
1.20 |
0.025 |
0.025 |
- |
E355 |
1.0580 |
0.22 |
0.55 |
1.60 |
0.025 |
0.025 |
- |
DIN1630 St37.4 NBK Precision Cold Drawn Pipe
