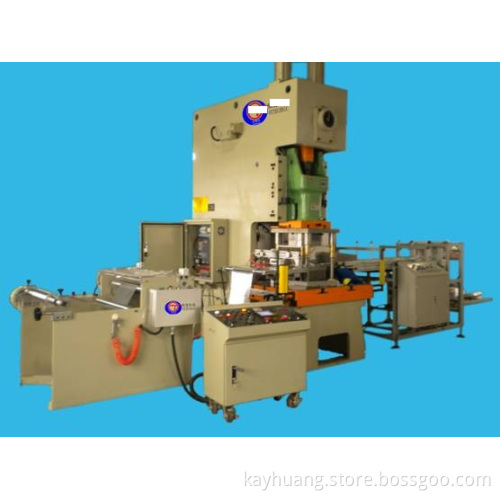

food packaging aluminum foil container machine

Specification of Auto-Lubricated Feeder:

Max. Material Roll Dia.: ￠650mm

Max. Material Roll Width:650mm

Feeding Speed:10-30M/min

Feeding Length: 30-900mm

Feeding Tolerance: +/-0.3mm

Capacity: 1Kw

Voltage: 380V/220V

Weight:0.6T

Dimension: 1200x1200x1100mm(L*W*H)

Length Controller:700x720x550mm(L*W*H)

Specification of 45T Pneumatic Punch:

Pressure: 400KN

Hole Size of Collecting Table: 300*300mm

Production Output: 40-80times/min

Board Thickness of Collecting Table:50mm

Max. Height of Mould:290mm(excluded working plate50mm)

Slide Board Size: 220*400mm

The Distance fromCenterofSlidePiece and Punch Unit:340mm

The adjustment height of Installation of Mould:60mm

Size of Screw Hole of Mould: 50*60mm

Size of Collecting Table: 660*1000 mm*50 mm

Dimension: 1500*1125*2315mm(L*W*H)

Motor Capacity:5.5KW

Weight:4000kg

Voltage:3-380v  50Hz
