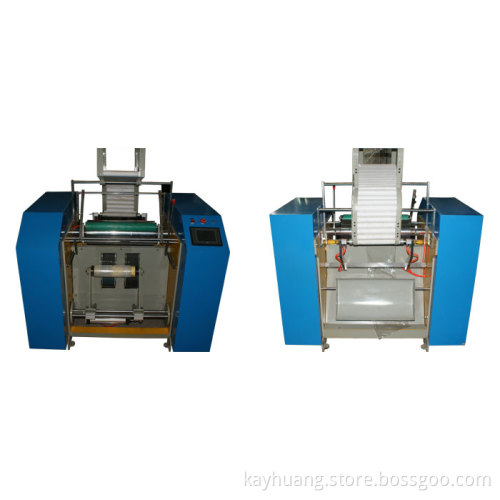

semi-automatic aluminum foil rewinder

Usage and Applications:

This machine widely used for manufacturing household aluminum foil roll.

- Speed can be adjusted.

-Complete with PLC Control Panel Board

-High productive and low cost.

-Stable property, easy operation.

Main parts:

1. an auto-lubricated feeder

2. an electronic controlled panel(Siemens brand)

3. a manually paper core uploading part

4.a manually paper core glueing part

5. aluminum foil roll rewinding part

Procedure of production line:

Raw material:aluminium foil unwinding&feeding--> manually paper core uploading->manually paper core glueing -->aluminum foil rewinding--> manually collect product ->Packing

Technical Data:

Material thickness                       -0.01-0.02mm

Maximum Unwinding Width               -500mm

Maximum Unwinding Diameter            -600mm

Rewinding Width                        100-500mm

Mother Core Diameter                  -76mm/152mm(option)

Finished Product Core Diameter          -25mm/30mm/35mm(option)

Length of production                     -3m-600m

Production Speed                       -0-300m/min

Power of Motor                         -2.2 kw

Machine Weight                        -950 kg

Machine Dimension (LxWxH)             -1100x1350x1500mm
