Spiral perforated duct machine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100 |
Description

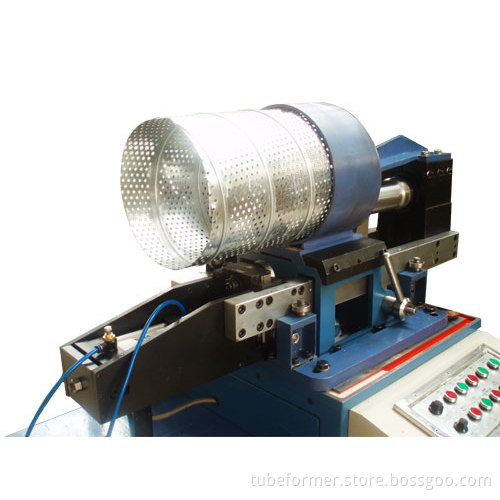

Spiral Perforated duct machine is made for the filter metal core, we supply two types of lock seam, one is outside lock seam, the other is inside lock seam, the diameter range from 80mm to 600mm.
Features
1 Spiral perforated tube
2 Fixed molds type
3 Roll shear
4 No sparking &; Quiet
|
Technical Data |
|
|
Model |
PT500 |
|
Tube Diameter |
80~600mm(2.4"~18") |
|
Material Thickness |
Galvanized Steel 0.5~1.0mm |
|
Strip Width |
137mm |
|
Lock type |
Outside lockseam and Inside lockseam |
|
Main Power |
7.5KW |
|
Cutting System |
Roll shear |
|
Wight |
1550Kg |
|
Dimensions |
3250x1860x1580mm |
