Spiral duct forming machine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100 |
Description

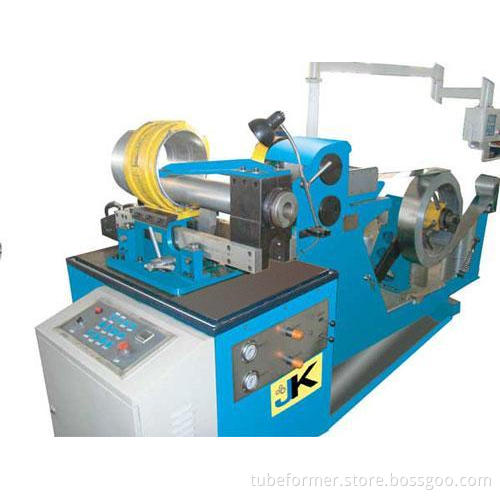

Spiral duct forming machine ST150 use the fixed molds, applies the latest flying slitter, which cuts the tubes to length without noise or hot sparks as known from the saws and provides smooth tube ends without deburring.
Features
1 Fixed Molds
2 Roll Shear Cutting
3 No sparking & Quiet
4 High speed
5 Full automatic
|
Technical Data |
|
|
Model |
ST150 |
|
Tube Diameter |
150~1500mm(6"~60") |
|
Material Thickness |
Galvanized
Steel0.4~1.2mm |
|
Strip Width |
137mm |
|
Strip Speed |
up to 35m/min |
|
Main Power |
19.12KW |
|
Cutting System |
Fliying slitter |
|
Uncoiler |
Max. Bearing 1200Kg |
|
Dimension |
2150*1950*2900mm |
|
Weight |
1560Kg |
