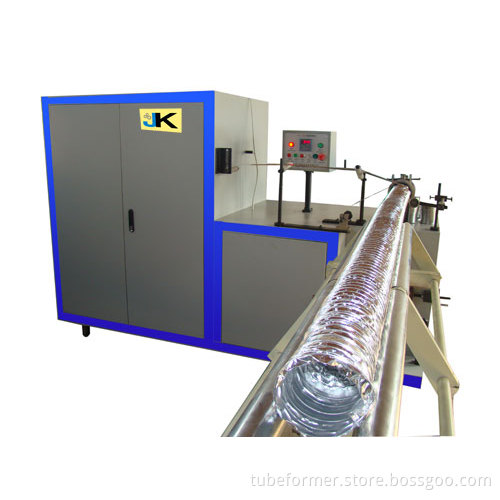

Aluminum flexible duct machine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100 |
Description
Aluminum tube is widely used in the kitchen, bathroom, air condition venting and HVAC system. The stainless steel wire inside can hold the flexible tube in shape and make the tube flexible. The latest aluminum tubeformer can make the quality aluminum flexible duct, and also we can make the insulation for protecting heat.
Features
1 Extra large oven
2 300w heating
3 large diameter range
4 Numeric temperature control
|
Technical Data |
|
|
Model |
AFT1 |
|
Tube Diameter |
75~750mm(3.5"~30") |
|
Aluminum Foil Thickness |
0.05~0.15mm |
|
Stainless Steel Wire Dia. |
0.08~0.18mm |
|
Raw Material |
Single or Double layer aluminum composite |
|
Strip width |
45~60mm |
|
Strip Speed |
Up to 5m/min |
|
Main Power |
1.5KW |
|
Oven Heating Power |
300W |
|
Dimension |
1200*550*1200mm |
|
Weight |
300Kg |
